Donut Monopile Floating Dock Bumper Fender Foam Filled

Donut Monopile Floating Dock Bumper Fender Foam Filled

  • Donut Monopile Floating Dock Bumper Fender Foam Filled
  • Donut Monopile Floating Dock Bumper Fender Foam Filled
  • Donut Monopile Floating Dock Bumper Fender Foam Filled
Donut Monopile Floating Dock Bumper Fender Foam Filled
Product Details:
Place of Origin: CHINA
Brand Name: LUHANG
Certification: CCS,BV,LR,ABS
Model Number: Donut Fender
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Plastic film winding
Delivery Time: 5 work days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 Units Per Month
Contact Now
Detailed Product Description
Material: EVA Foam + PU Skin Specification: Customized
Application: Submarine Jetties Donut Foam Fender Color: Red,white,yellow,grew,black,orange,ect
Lifespan: 10 Years Warranty: 24 Months
High Light:

Monopile Floating Dock Bumper Fender

,

Foam Filled Dock Bumper Fender

,

Donut Dock Bumper Fender

Qingdao Luhang Marine airbag and fenderCO.,LTD engineers have developed the industry’s most customisable and versatile donut fendering solutions.

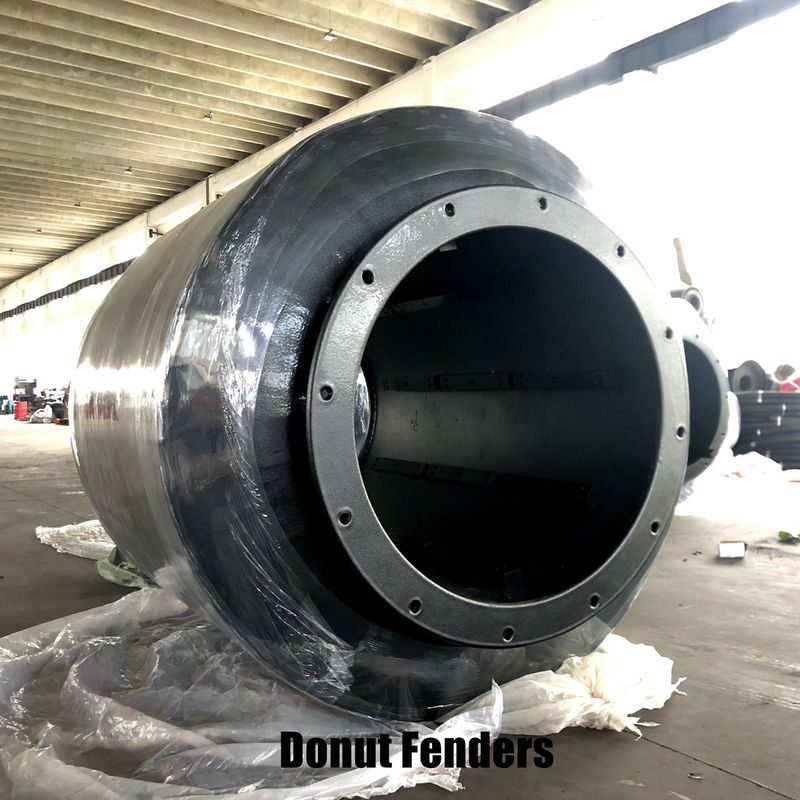

Luhang Donut fenders are foam-filled energy absorbing fenders that have an open core in order to freely rotate about a stationary monopile or are mounted on a pier in such a way that they rotate as pressure is exerted by a vessel. Having a vessel roll off the fender nearly eliminates shear forces while making navigation much easier, especially to and from a berth in windy or high-current conditions.

Luhang Donut Monopile Floating Foam-Filled Fender is designed to simply slip over a stationary monopile and float at the fluctuating water line. Luhang’s internal anti-friction UHMW bearing pads allow the fender to slide around and up and down the pile allowing a vessel to roll along the moving fender enabling the fender to be at the same relative level to the vessel at all tides. When outfitted with an independent mooring crown, this fendering system provides and optimal all-tide mooring solution.

The basic design principle of the floating luhang Monopile Foam-Filled Fender is to provide an innovative fendering system that absorbs energy, adjusts to tidal fluctuations and eliminates shear forces. The ability of this fendering system to freely ride up and down and rotate around the driven stationary central steel pile even under compression achieves this design goal. The proven performance and versatility of the Luhang Monopile Fendering System make it ideal for even the toughest mooring applications.

Luahng sets itself apart by working directly with customers and engineers to provide customised donut fendering solutions unique to every customer and project.

One of these projects is the Fireboat 15 Dock Upgrade at Pier F, Berth F202, at the Port of Long Beach in Long Beach, California, US. Operated by the City of Long Beach Fire Department, two fireboats used to protect port assets and provide safety to the area are berthed at a port fire station on Pier F. Due to increased post-9/11 safety concerns, assessment of the aging currently operated fireboats and the need for more advanced technology to handle larger container ships and port expansion, the Long Beach Harbor Commission requested that the fire department upgrade port fireboat facilities. This included the fireboat dock, which had to be upgraded to include two new, larger 108′ fireboats. Marine Fenders International was awarded the contract to provide fenders for the upgraded fireboat dock.

Berthing design for the new fireboats

For the project, Luhang Donut Monopile Floating Foam Filled Fender was chosen to help protect the $50m+ fireboat investment. For the renovation of the fire boat berth, a solution was required that limited reconstruction of the docks, while adding all-tide moorings. Luhang Donut Monopile Floating Foam-Filled Fenders with independent mooring crowns were perfect for the task.

The 20ft Luhang Donut Fenders were designed specifically for these fire boats and set in the water to maximise the boats’ contact with the fender, thus reducing the pressure put on their hulls. In a race against time to get out to a fire or coming in from an emergency, the Donut Fenders allow the fire boats to leave or come back quickly, maximising contact energy absorption with their high density foam core and ability to roll off the hull, further absorbing the energy beyond a traditional stationary fender.

Sitting on top of the fenders are mooring crowns, which are robust steel structures that slip over the monopile and rest on top of the donut fenders. Each mooring crown is designed to rotate freely due to low-friction UHMW bearing pads and with multiple bollards for the vessel’s dock lines. Because the mooring crown rotates independently of the monopile and the donut fender, movement of the vessel in windy and high-current conditions puts less strain on the dock lines than if they were tied-down to a traditional fixed cleat on a dock or wharf.

Applications for luhang Donut Fendering Systems include breasting dolphins, turning dolphins, corner protection, as guiding structures, ferry vessel applications, dock fendering where large tidal changes occur, dock fendering where vessels need roll along fenders for loading, lock gate protection, and bridge/pier protection.



Donut Fender specifications



Capacity Standard Capacity*
Donut Size D
[mm]
Max. pile dia.
[mm]
Energy
[kNm]
Reaction
[kN]
1270 610 7,2 116
1450 710 9,2 131
1520 762 10,5 140
1780 914 14,1 162
1910 995 16,4 175
2030 1,067 18,6 186
2210 1,185 22,3 204
2290 1,219 23,6 210
2490 1,345 28,0 229
2540 1,372 29,3 234
2790 1,524 35,3 256
2790 1,639 40,1 273
3050 1,676 42,1 280
3300 1,829 49,5 304
3450 1,933 54,6 319
3530 1,981 57,2 327
3810 2,134 65,9 350
3960 2,241 72,1 366
4060 2,286 75,1 374
4220 2,388 81,3 389



LUHANG Certification



LUHANG Company has been Certificated by ISO 9001:2009, CCS, BV, SGS, GL, DNV.

Passed Environment Management System Certification, and OHSMS Certification.

LUHANG Products have been approved by CCS, BV, LR, DNV, GL, ABS, V-TRUST and other third party inspector.



LUHANG Company Information



Qingdao LuHang Marine Airbag and Fender Co., LTD,foundedin 1988, is the largest marine airbag and fender manufacturer in China.We have established long-term cooperation relationship with central enterprises, many big shipyards and ship owners, trading companies in China. We also export to Malaysia, Indonesia, Philippines, Singapore, India,Vietnam, Turkey etc. and many other countries in the world.
