Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon

Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon

    • Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon
    • Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon
    • Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon
  • Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon

    Product Details:

    Place of Origin: China
    Brand Name: Luhang
    Certification: ISO14409
    Model Number: LHA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD$100~USD$3000.00 /pcs negotation
    Packaging Details: Film packing on pallet
    Delivery Time: 10 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 pcs /month
    Contact Now
    Detailed Product Description
    Color: Black Material: 60% Nature Rubber
    Diameter: 1.5m 2.0m Length: 10m / 15m / 18m / 20m / 24m
    Size: Customize Working Pressure: 0.111 Mpa
    Max Pressure: 0.4995 Mpa
    High Light:

    inflatable marine airbags

    ,

    airbags for shipping containers

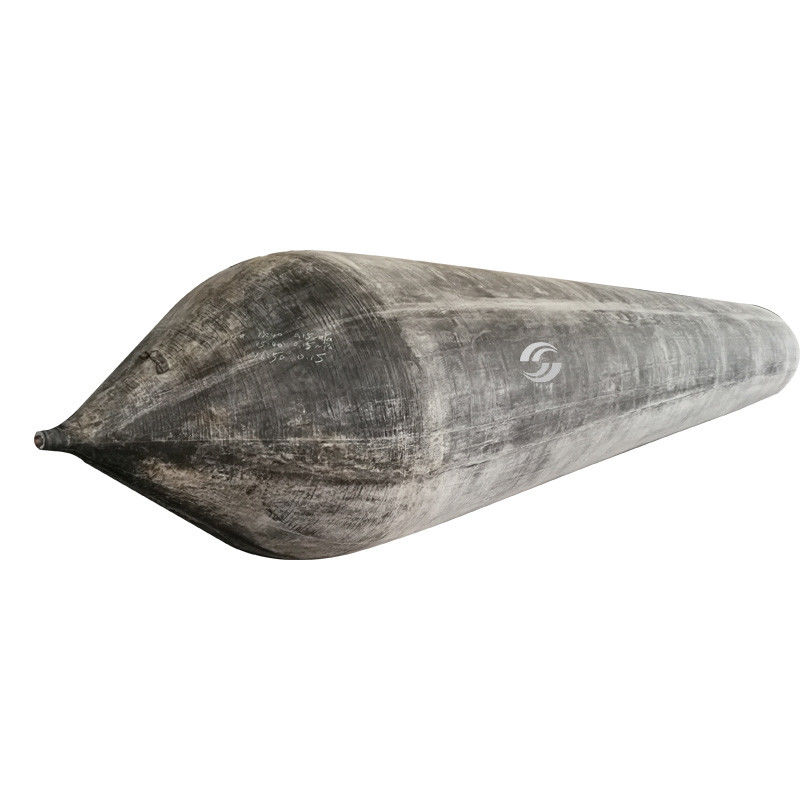

    Inflatable Marine Rubber Airbag Vulcanize Size Customize Ship Landing Airbag





    Luhang ship launching airbag originated since1988, now it is China's leading and professional marine airbag manufacture.
    Marine Airbag for ship launching have the best designed structure which consists of five different functional membranes in rubber layers.



    Outer Layer
    The outer rubber layer that covers the outside of marine airbag to protect under layers from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.

    Inner Layer
    The inner rubber layer seals pressurized air inside marine airbags.

    Synthetic-Tire-Cord Layer


    The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.

    Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon 0
    Performance Calculation Principle of Airbags


    The bearing capacity of marine airbags was calculated based on the working pressure, contact area. Herein, working pressure was got upon the burst pressure and safety working factor.

    Because of the flexibility of marine airbag the contact area will be affected by some terms which include the carried ship condition, the different position from gravity center during the process of ship launching and pulling. So the bearing capacity of airbags will vary as well as the contact area.

    The approximate bearing capacity can be calculated as follows:

    F=PS
    S=π x (D1-D2)/2

    Mark:
    F: Bearing capacity

    P: Inner pressure

    S: Contact area

    D1: Diameter of airbags when free of loat

    D2: Working height of airbags when loaded

    Specification:



    Diameter Safe working pressure Work high The bearing capacity
    KN/M T/M
    D=1.0M 0.17MPa 0.6m 106.93 10.93
    0.5m 133.61 13.62
    0.4m 160.3 16.34
    D=1.2M 0.14MPa 0.7m 110.07 11.22
    0.6m 132.04 13.46
    0.5m 154.02 15.7
    0.4m 175.99 17.94
    D=1.5M 0.11MPa 0.9m 103.79 10.58
    0.8m 121.06 12.34
    0.7m 138.32 14.1
    0.6m 155.59 15.86
    0.5m 172.85 17.62
    D=1.8M 0.09MPa 1.1m 99.08 10.1
    1.0m 113.21 11.54
    0.9m 127.33 12.98
    0.8m 141.46 14.42
    0.7m 155.59 15.86
    0.6m 169.71 17.3
    D=2.0M 0.08MPa 1.2m 100.65 10.26
    1.1m 113.21 11.54
    1.0m 125.76 12.82
    0.9m 138.32 14.1
    0.8m 150.88 15.38
    0.7m 163.43 16.66
    0.6m 175.99 17.94





    Company Information


    Vulcanize Ship Landing Airbag Customized Size Floating Rubber Cylinder Pontoon 1
    Qingdao Luhang Marine Airbag and Fender Co.,Ltd is located in Jidong Industrial Park, Jimo City, Qingdao. We are a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbag, pneumatic rubber fender, EVA foam filled fender, marine buoys in deep and shallow seas etc. Through many years’ development and accumulation, we have developed to a new high-tech enterprise with an integration of scientific research and design, product R&D,sales and technical service. With advanced manufacturing equipment, strict QC,we are supplying high quality products and after-sale service and widely appraised by domestic and overseas customers.

    For many years, we have been doing our best to research and development advanced products with a realistic and dedicated attitude. From July 1st ,2002, we started carrying out <Qingdao Luhang Marine Airbag and Fender Factory Standard Lifting and Weight Loading Airbag > and from July 1st, 2004, we started carrying out <Qingdao Luhang Marine Airbag and Fender Factory Standard of Pneumatic Rubber Fender>The performance of our products exceeds China standards and Industry Standards.


    Luhang company had been certificated by ISO9001:2009, CCS, DNV,GL and SGS. Luhang is a Qingdao Famous brand. Products had been approved by CCS, DNV.GL,BV,ABS. Customers are free worry of our products and can use them safely.
