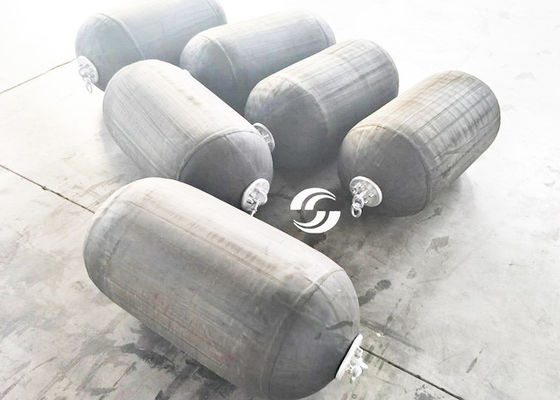

Safety Rubber Boat Dock Bumpers High Transportation Efficiency Customized Size

Safety Rubber Boat Dock Bumpers High Transportation Efficiency Customized Size

    • Safety Rubber Boat Dock Bumpers High Transportation Efficiency Customized Size
    • Safety Rubber Boat Dock Bumpers High Transportation Efficiency Customized Size
  • Safety Rubber Boat Dock Bumpers High Transportation Efficiency Customized Size

    Product Details:

    Place of Origin: China
    Brand Name: Luhang
    Certification: ISO17357
    Model Number: LHP1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD$230.00~ USD$700.00 / pcs Negotiable
    Packaging Details: Nude packing
    Delivery Time: 10 ~ 15 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100 pcs/ month
    Contact Now
    Detailed Product Description
    Material: 60% Nature Rubber Color: Black
    Usuage: Ship Boat Berthing Name: Pneumatic Boat Fender Marine Fender
    Type: Sling Type Warrenty: 2 Years
    Design Life: 6~12 Years
    High Light:

    boat dock fenders

    ,

    commercial boat fenders

    Inflatable Marine Fender 0.5m x 1.0m Ship Berthing Bumper Yacht Fender







     pneumatic rubber fender





    By development of shipping , the risk of two ships when berthing at sea also increased, especially when the weather changes, there's wind and waves. Using pneumatic fenders as side  buffer of the ship, not only make heavy berthing becomes easy, but also improve the efficiency of the transportation operations.





    The advantages of pneumatic rubber fender



    Choose reinforce synthetic-tire-cord layers

    No mold vulcanization and attach surrounding molding process

    High energy absorption and low reaction force

    Good adaptability to tilt in contact

    Floating on the surface of the water, ship swaying can apply







    Structure characteristics of the pneumatic rubber fender



    LuHang Pneumatic Rubber Fenders made of an outer rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized firmly.



    1]. the outer rubbers are used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.



    2]. the reinforced synthetic tyre cord layers strong enough to maintain the internal air pressure of the fender.



    3]. the inner rubber layer seals the pressed air inside the fender.



    4]. fenders equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally.



    Fender assembly for the end of metal, by inside and outside the two flanges with bolts, nut clamping, center is a valve, its structure is similar to automobile tire valve.







    Size(mm) Compression at 60%

    Refence weight

    (KG)

    Diameter Leagth Energy absorption(KJ)

    Reaction

    (KN)

    500 1000 6 64 25
    600 1200 10 86 35
    700 1500 17 137 50
    1000 1500 32 181 80
    1000 2000 45 257 100
    1200 2000 63 297 120
    1350 2500 100 426 170
    1500 3000 153 579 320
    1700 3000 190 637 400
    2000 3500 308 875 590
    2500 4000 663 1380 1000
    2500 5500 932 2010 1400
    3000 5000 1050 2030 1800
    3000 6000 1315 2488 2200
    3300 6500 1814 3015 2700
    3500 6000 2018 3286 2800
    3500 6500 2325 3656 3200
    3500 7500 2650 4018 3600
    4500 9000 4752 5745 6800





    Qingdao Luhang is a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbags, pneumatic rubber fenders, EVA foam filled fender, marine buoys in deep and shallow seas etc. Through many years’ development and accumulation, we have developed to a new high-tech enterprise.
