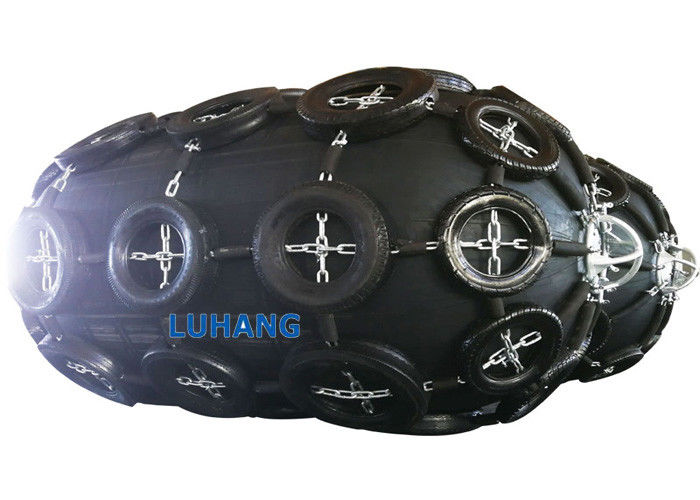

Port Mooring Pneumatic Marine Fender 1.7m*3.0m 50Kpa Yokohama Ship Fender

Port Mooring Pneumatic Marine Fender 1.7m*3.0m 50Kpa Yokohama Ship Fender

    • Port Mooring Pneumatic Marine Fender 1.7m*3.0m 50Kpa Yokohama Ship Fender
    • Port Mooring Pneumatic Marine Fender 1.7m*3.0m 50Kpa Yokohama Ship Fender
  • Port Mooring Pneumatic Marine Fender 1.7m*3.0m 50Kpa Yokohama Ship Fender

    Product Details:

    Place of Origin: China
    Brand Name: Luhang
    Certification: ISO17357-1:2014
    Model Number: LHP6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD$2490.00~ USD$3200.00 / pcs Negotiable
    Packaging Details: Nude packing
    Delivery Time: 10 ~ 15 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100 pcs/ month
    Contact Now
    Detailed Product Description
    Usuage: Boat Berthing Mooring Name: Yokohama Fender Price
    Type: Tyre Chain Net Cover Warrenty: 2 Years
    Size: Custmoize Life Span: 6 ~ 12 Years
    Material: 60% Nature Rubber Color: Black
    High Light:

    boat landing fender

    ,

    boat dock fenders

    Marine Mooring Pneumatic Rubber Fenders 1.7m x 3.0m 50Kpa Port Ship Fender



    Pneumatic rubber fender can absorb a lot of energy, reduce the unit pressure effect on the wear surface. This advantage makes the air-filled fender became an ideal ship protection device and got widely used in ships, offshore platform, bulk carriers, the floating structure, large terminals, port and dock.



    Pneumatic rubber fender construction:



    1] Out rubber are used to protect the cord layers and inner rubber layer from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.


    2] reinforcement synthetic-tyre-cord layer strong enough to maintain the internal air pressure of the fender


    3] Inner rubber layer seals the pressurized air inside the fender


    4] Fenders equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally.



    The marine pneuamtic fender can be protected by tire net and can be used without tire net as well.

    Fender with tire net: Fender body is wrapped with a tire net.It can protect the fender body and lengthen the life of the fender.

    The tires are specially treated to have a good looking. The net has chain tire net,rope tire net, steel wire tire net,chain tire net with rubber sleeves.



    Port Mooring Pneumatic Marine Fender 1.7m*3.0m 50Kpa Yokohama Ship Fender 0



    Size(mm) Compression at 60%

    Refence weight

    (KG)

    Diameter Leagth Energy absorption(KJ)

    Reaction

    (KN)

    500 1000 6 64 25
    600 1200 10 86 35
    700 1500 17 137 50
    1000 1500 32 181 80
    1000 2000 45 257 100
    1200 2000 63 297 120
    1350 2500 100 426 170
    1500 3000 153 579 320
    1700 3000 190 637 400
    2000 3500 308 875 590
    2500 4000 663 1380 1000
    2500 5500 932 2010 1400
    3000 5000 1050 2030 1800
    3000 6000 1315 2488 2200
    3300 6500 1814 3015 2700
    3500 6000 2018 3286 2800
    3500 6500 2325 3656 3200
    3500 7500 2650 4018 3600
    4500 9000 4752 5745 6800







    Testing and inspection for  pneumatic rubber fenders shall be based on indicated below:



    Material test of rubber : Conducted in accordance with the Physical properties of inner and outer rubber required by ISO 17357:2014
    Dimensional inspection : shall be inspected at the initial internal pressure. Tolerance: +10%, -5%.
    Air leakage test : shall be conducted at initial pressure for more than 30 min
    Hydrostatic-pressure test : shall be performed for 10 min at the hydrostatic pressure shown in “test pressure at 0% deflection”. Maximum temporary elongation: 10%



    Port Mooring Pneumatic Marine Fender 1.7m*3.0m 50Kpa Yokohama Ship Fender 1



    Our company:



    Luhang has been certificated by ISO9001:2009, CCS, DNV,GL and SGS. Famous brand of Qingdao. Our products had been approved by CCS, DNV.GL,BV,ABS. Customers are free worry of our products and can use them safely.We are a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbag, pneumatic rubber fender, EVA foam filled fender, marine buoys in deep and shallow seas etc.
