| Place of Origin: | China |
| Brand Name: | LUHANG |
| Certification: | CCS,BV,LR,ABS |
| Model Number: | D2m*L3.5m(EVA) |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic film winding |
| Delivery Time: | 8 work days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 units per month |
| Material: | EVA Poly Foam | Skin: | Poly Urea |
|---|---|---|---|
| Size: | D2m*L3.5m | Energy Absorption: | 456 KJ |
| Reaction Force: | 990 KN | Color: | Negotiable |
| Highlight: | foam boat fenders,cell foam fender |
||

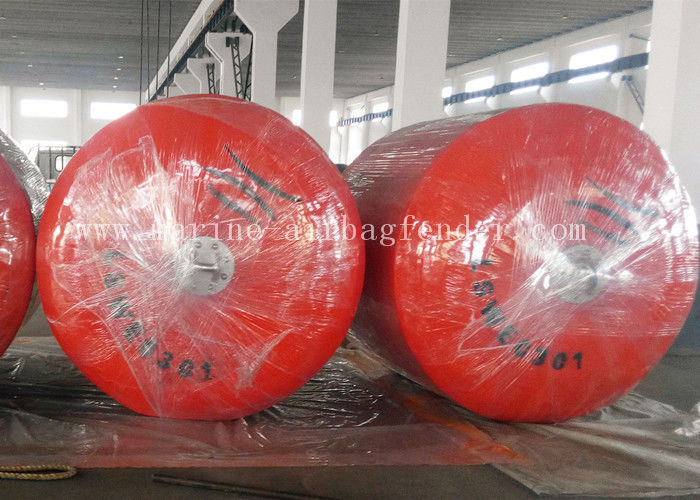

D2m*L3.5m Bright Color PU Skin EVA foam Filled Fender for Berthing Protection
EVA FOAM FILLED FENDER is a floating type compression fender that is highly versatile and suitable for a wide range of applications. It consists of an outer Polyurethane protective layer, a reinforced rubber nylon cord fabric, as well as an internal space that is filled with foam as a medium to absorb collision. Foam fenders outer layer has an extremely low frictional resistance and is highly resistant to wear due to its strength. Impact force is efficiently absorbed by the foam fender, reducing the resultant force acted upon the wharf/vessel at the point of contact.
Application wise, this kind of fender can be used for tugs, workboats, pilot boats and is suitable for open sea terminals, gravity ports, especially for large tidal wave docks. Foam fender is also a viable option for Ship-to-Ship (STS) operations.
1.Reinforced elastomer skin
EVA foam filled fenders have a nylon filament reinforced polyurethane skin which has excellent resistance to water,
oil, ice, strong sunlight and abrasive surfaces. It remains flexible even at -40°C (-40°F) making it suitable for
Tropical or Arctic operations.
2.Energy absorbing
The EVA foam filled fender absorbs impact energy so colliding , vessels will not damage the buoy or themselves.
| Luhang EVA fender | |||
| Size(mm) | compression at 60% | ||
|
Diameter
|
length
|
Energy absorption(KJ) | Reaction Force(KN) |
| 300 | 500 | 1.8 | 3.8 |
| 500 | 1000 | 8 | 71 |
| 600 | 1000 | 12 | 86 |
| 660 | 1100 | 20 | 120 |
| 700 | 1500 | 27 | 161 |
| 1000 | 1500 | 49 | 205 |
| 1000 | 2000 | 64 | 274 |
| 1200 | 2000 | 93 | 337 |
| 1200 | 2400 | 110 | 390 |
| 1300 | 2900 | 145 | 463 |
| 1350 | 2500 | 145 | 463 |
| 1500 | 3000 | 216 | 624 |
| 1700 | 3000 | 273 | 696 |
| 2000 | 2200 | 286 | 622 |
| 2000 | 3500 | 456 | 990 |
| 2000 | 4000 | 505 | 1110 |
| 2200 | 4500 | 697 | 1396 |
| 2500 | 4000 | 781 | 1386 |
| 2500 | 5000 | 985 | 1750 |
| 3000 | 5000 | 1410 | 2050 |
| 3000 | 6000 | 1695 | 2460 |
| 3300 | 6500 | 2245 | 2950 |
| 4500 | 9000 | 7660 | 19650 |
3.Unsinkable foam
Only closed-cell foams are used in EVA foam filled fenders. The micro-bubble matrix of the foam means it does not absorb water even if cut or damaged. This makes EVA foam filled fenders impossible to sink.
4.Permanent colors
The poly urea skin is pigmented through its entire thickness, so colors will not wear off and will never
need repainting. A wide choice of bright colors can help improve safety and identification.
5.Company Introduction
Qingdao LuHang Marine Airbag and Fender Co., LTD ,
founded in 1988 , is the leading&most professional&largest airbag and fender manufacturer in China . We have established long-term cooperation relationship with central enterprises , many big shipyards and ship owners, trading companies in China. We also export to Malaysia , Indonesia , Philippines , Singapore , India ,Vietnam , Turkey etc . and many other countries in the world.
