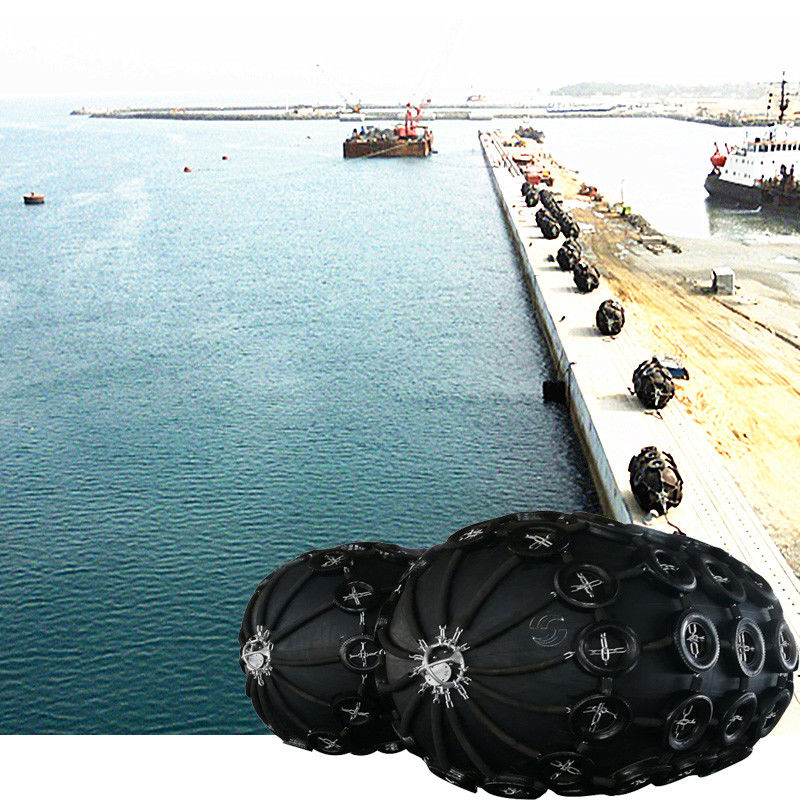

Pneumatic Rubber Port Docking Fender Yokohama Type Multi - Layered

Pneumatic Rubber Port Docking Fender Yokohama Type Multi - Layered

    • Pneumatic Rubber Port Docking Fender Yokohama Type Multi - Layered
    • Pneumatic Rubber Port Docking Fender Yokohama Type Multi - Layered
  • Pneumatic Rubber Port Docking Fender Yokohama Type Multi - Layered

    Product Details:

    Place of Origin: China
    Brand Name: Luhang
    Certification: ISO17357-1:2014
    Model Number: LHP6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Nude packing
    Delivery Time: 10 ~ 15 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100 pcs/ month
    Contact Now
    Detailed Product Description
    Usuage: Marine Mooring & Berthing Name: Ship To Dock Fender
    Type: Tyre Chain Net Cover Warrenty: 2 Years
    Life Span: 6 ~ 12 Years Material: 60% Nature Rubber
    Size: Customize As Customer Requirments
    High Light:

    yokohama ship fenders

    ,

    yokohama bumpers

    Yokohama Type Pneumatic Rubber Fender 2.5m x 5.5m Port Docking Fender



    Ships usually make initial contact with the dock or another ship on STS operations at an oblique angle. In the case of solid rubber fenders or foam fenders, rated reaction force and energy absorption decreases considerably at inclined compressions compared with parallel compression. In order to compensate for the decrease of energy absorption at inclined compression, it is necessary to use larger sizes' Yokohama pneumatic fenders.



    Distribution of load is also comparatively even because of the molecular freedom of air and high flexibility of the multi-layered cord-reinforced rubber membrane. This makes the body of a pneumatic rubber fender more shape conformant compared to solid or foam fenders, and thus able to better distribute the load along the hull of a ship or jetty structure during inclined compression.



    Pneumatic Rubber Port Docking Fender Yokohama Type Multi - Layered 0





    Yokohama pneumatic rubber fenders can be easily handled and installed because of its light weight. It can resist the shearing force and maintain energy absorption level under inclined compressionup to 15 degrees. Meanwhile, provide the low and more even pressure from hull .


    Consisted of several synthetic tire cord layers and tough abrasion resistant outer rubber, they have consistent performance even under rough condition. It can minimize the maintenance cost and damage risk. The best material also ensure the self-buoyancy and extremely long service life.



    Performance sheet:



    Size(mm) Compression at 60%

    Refence weight

    (KG)

    Diameter Leagth Energy absorption(KJ)

    Reaction

    (KN)

    500 1000 6 64 25
    600 1200 10 86 35
    700 1500 17 137 50
    1000 1500 32 181 80
    1000 2000 45 257 100
    1200 2000 63 297 120
    1350 2500 100 426 170
    1500 3000 153 579 320
    1700 3000 190 637 400
    2000 3500 308 875 590
    2500 4000 663 1380 1000
    2500 5500 932 2010 1400
    3000 5000 1050 2030 1800
    3000 6000 1315 2488 2200
    3300 6500 1814 3015 2700
    3500 6000 2018 3286 2800
    3500 6500 2325 3656 3200
    3500 7500 2650 4018 3600
    4500 9000 4752 5745 6800



    Pneumatic Rubber Port Docking Fender Yokohama Type Multi - Layered 1



    Our company:



    Luhang Marine Airbag and Fender Co.,Ltd. established on 1988,we are China's professional manufacture of ship launching /  salvage rubber airbag and ship berthing fender. Our main products are pneumatic rubber fender, rubber airbag,EVA foam fender/buoy, solid rubber fender etc.

    By advanced equipment, strictly QC, we supply high quality products and after sales service, and got widely appraised by domestic and overseas customers.
