| Place of Origin: | China |
| Brand Name: | Luhang |
| Certification: | ISO14409 |
| Model Number: | LHA6 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD$150~USD$3000.00 /pcs negotation |
| Packaging Details: | Film packing on pallet |
| Delivery Time: | 10 ~15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs /month |
| Color: | Black | Material: | 60% Nature Rubber |
|---|---|---|---|
| Diameter: | 1.5m 2.0m 2.5m 3.0m And Customize | Length: | 10m / 15m / 18m / 20m / 24m Customize |
| Working Pressure: | 0.042Mpa~0.292Mpa | Certificate: | ISO14409 |
| High Light: | inflatable marine airbags,airbags for shipping containers |
||

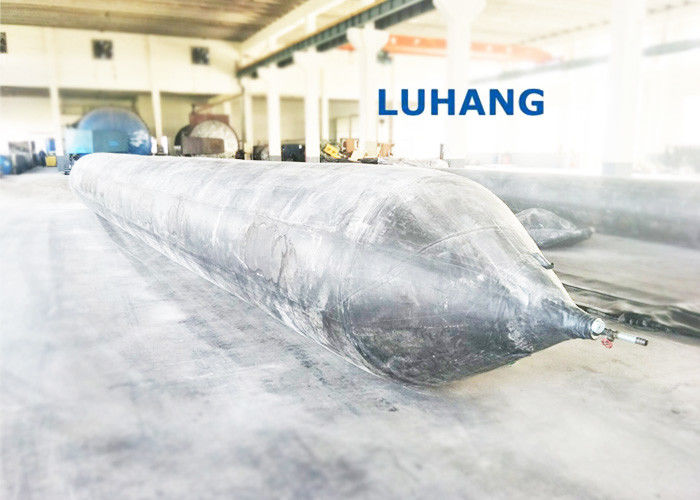

Vulcanize Rubber AirBag Dia and Length Customize Ship Lifting Marine Air bag

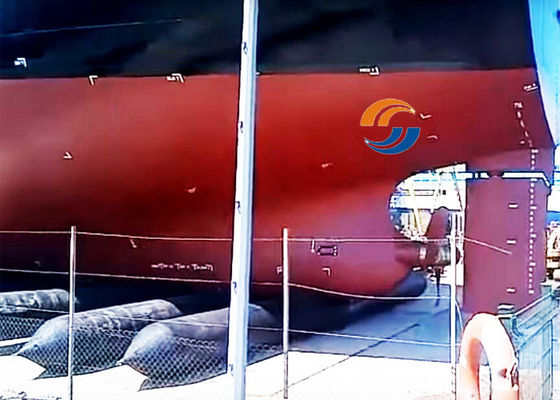

“Ship Launching marine airbag is a kind of inflatable air bags with high pressure used for launching a vessel. It is also named marine airbags, ship launching balloon, roller bags, air lifting bags, invented in 1980, which is a modern launching methods in the shipbuilding industry nowdays.
Luhang is professional manufacture of ship launching / landing salvage rubber air bag and ship berthing fender.
Performance Calculation Principle of Airbags
The bearing capacity of ship launching rubber air bags was calculated based on the working pressure, contact area. Herein, working pressure was got upon the burst pressure and safety working factor.Because of the flexibility of rubebr air bag the contact area will be affected by some terms which include the carried ship condition, the different position from gravity center during the process of ship launching and pulling. So the bearing capacity of rubber airbags will vary as well as the contact area.
The approximate bearing capacity can be calculated as follows:
F=PS
S=π x (D1-D2)/2
Mark:
F: Bearing capacity
P: Inner pressure
S: Contact area
D1: Diameter of airbags when free of loat
D2: Working height of airbags when loaded
Specification:
|
Diameter |
Safe working pressure |
Work high |
The bearing capacity |
|
|
KN/M |
T/M |
|||
|
D=1.0M |
0.17MPa |
0.6m |
106.93 |
10.93 |
|
0.5m |
133.61 |
13.62 |
||
|
0.4m |
160.3 |
16.34 |
||
|
D=1.2M |
0.14MPa |
0.7m |
110.07 |
11.22 |
|
0.6m |
132.04 |
13.46 |
||
|
0.5m |
154.02 |
15.7 |
||
|
0.4m |
175.99 |
17.94 |
||
|
D=1.5M |
0.11MPa |
0.9m |
103.79 |
10.58 |
|
0.8m |
121.06 |
12.34 |
||
|
0.7m |
138.32 |
14.1 |
||
|
0.6m |
155.59 |
15.86 |
||
|
0.5m |
172.85 |
17.62 |
||
|
D=1.8M |
0.09MPa |
1.1m |
99.08 |
10.1 |
|
1.0m |
113.21 |
11.54 |
||
|
0.9m |
127.33 |
12.98 |
||
|
0.8m |
141.46 |
14.42 |
||
|
0.7m |
155.59 |
15.86 |
||
|
0.6m |
169.71 |
17.3 |
||
|
D=2.0M |
0.08MPa |
1.2m |
100.65 |
10.26 |
|
1.1m |
113.21 |
11.54 |
||
|
1.0m |
125.76 |
12.82 |
||
|
0.9m |
138.32 |
14.1 |
||
|
0.8m |
150.88 |
15.38 |
||
|
0.7m |
163.43 |
16.66 |
||
|
0.6m |
175.99 |
17.94 |
||
5.Insert airbags between support blocks and inflate them to lift vessel. When vessel is lifted, people can take out support blocks under the ship.
Through many years’ development and accumulation, Luhang has developed to a new high-tech enterprise with an integration of scientific research and design, product R&D,sales and technical service.
