Place of Origin: | China |
Brand Name: | Luhang |
Certification: | ISO14409 |
Model Number: | LHAS4 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | USD$1400.00~USD5100.00 / pc Negotiable |
Packaging Details: | Film packing on pallet |
Delivery Time: | 10 ~ 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100pcs / month |
Name: | Inflatable Rubber Airbag Pontoon | Certificate: | ISO14409 |
---|---|---|---|
Usuage: | Floating Lifting Heavy Constructions | Diameter: | 2.0m / 2.5m / 3.0m / 4.0m Etc |
Material: | 60% Nature Rubber | Color: | Black Vulconize |
Highlight: | marine salvage air lift bags,boat salvage airbags |

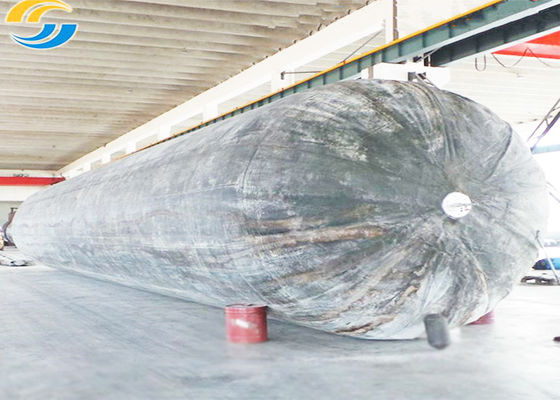

Marine Floating Tube 2.0m x 12m Rubber Pontoon Ship Lifting Air Bag
Wth the development of marine engineering and reparing equipments industry, marine floating airbags can be used for heavy structures lifting and moving in the construction industry also, conveying like cofferdams, caissions ( launching ). Rubber airbags are filled with air inside, they sometimes can be worked as pneumatic air bags rollers ( refloatation tube ) providing extra buoyancy for sunken ships, concrete blocks and floating docks.
Ship Lifting
* Tie winch wire rope to the ship hull
* Choose the bow at the bottom of the better position to fill in one or more air bags, when lifting to a certain height, will be the first to reach the ship under the winch tows. Barge bottom flat type, such as airbags and bottom contact area large, if the ship hull weight was small, as long as there is difficulties, from the first feeding can be from one side to the other string into a air bag.
When the hull weight is bigger, according to certain spacing increase 1 to 2 or more airbags, until lift up first. First a "v" shaped powerboat, often because of the airbag and the bottom contact area is too small lifting force is not enough, would require airbag back, sometimes want to back a quarter of the captain to lift up the bow.
* Start the winch, the ship started to move, one by one according to the requirements of air bag placed spacing feeding lifting airbags, always pull the boat to the berth.
* Lifting vessels in conjunction with the lifting gas bag together, playing hard block, good ship, withdraw rubber lifting airbags.
Specification
Diameter | Safe working pressure | Work high | The bearing capacity | |
KN/M | T/M | |||
D=1.5M | 0.11MPa | 0.9m | 103.79 | 10.58 |
0.8m | 121.06 | 12.34 | ||
0.7m | 138.32 | 14.1 | ||
0.6m | 155.59 | 15.86 | ||
0.5m | 172.85 | 17.62 | ||
D=1.8M | 0.09MPa | 1.1m | 99.08 | 10.1 |
1.0m | 113.21 | 11.54 | ||
0.9m | 127.33 | 12.98 | ||
0.8m | 141.46 | 14.42 | ||
0.7m | 155.59 | 15.86 | ||
0.6m | 169.71 | 17.3 | ||
D=2.0M | 0.08MPa | 1.2m | 100.65 | 10.26 |
1.1m | 113.21 | 11.54 | ||
1.0m | 125.76 | 12.82 | ||
0.9m | 138.32 | 14.1 | ||
0.8m | 150.88 | 15.38 | ||
0.7m | 163.43 | 16.66 | ||
0.6m | 175.99 | 17.94 |
Qingdao Luhang Marine Airbag and Fender Co.,Ltd is located in Jidong Industrial Park, Jimo City, Qingdao. We are a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbag, pneumatic rubber fender, EVA foam filled fender, marine buoys in deep and shallow seas etc. Please contact us if you are interested in our products.
Contact Person: Mr. Novid Liu
Tel: 86-18661897329
