Home ProductsMarine Salvage Airbags

Inflatable Marine Salvage Lift Bags Marine Salvage Tube Cylindrical Roller Body

Inflatable Marine Salvage Lift Bags Marine Salvage Tube Cylindrical Roller Body

  • Inflatable Marine Salvage Lift Bags Marine Salvage Tube Cylindrical Roller Body
  • Inflatable Marine Salvage Lift Bags Marine Salvage Tube Cylindrical Roller Body
Inflatable Marine Salvage Lift Bags Marine Salvage Tube Cylindrical Roller Body
Product Details:
Place of Origin: China
Brand Name: Luhang
Certification: ISO14409
Model Number: LHAS6
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD$1100.00~USD4600.00 / pc Negotiable
Packaging Details: Film packing on pallet
Delivery Time: 10 ~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs / month
Contact Now
Detailed Product Description
Name: Inflatable Rubber Airbag Certificate: ISO14409
Usuage: Floating And Lifting Diameter: 2.0m / 2.5m / 3.0m / 4.0m Etc
Color: Black Vulconize Material: 60% Nature Rubber
High Light:

marine salvage air lift bags

,

boat salvage airbags

Marine Salvage Tube 2.0m x 12m Rubber Floating Balloon Sunken Lifting Air Bag

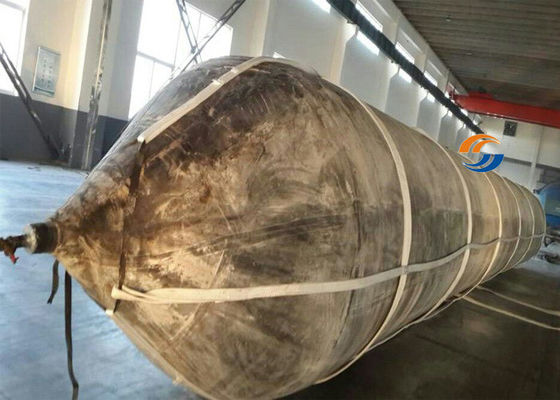

Ship salvage lifting airbags , are made of inner rubber layers, synthetic-tyre-cord-reinforced rubber layers and outer rubber layers.

The marine airbag body, is a cylindrical rollers with air sealed inside after fully inflated, two hemispherical conical parts which is called marine airbags heads at both ends, conneting the air bag body and mouths of the marine airbags. The ship salvage marine airbags mouths are installed with metal valves mounted for airbag pulling.



Ship Lifting



Tie the winch with wire rope to the ship hull



Choose the bow at the bottom of the better position to fill in one or more rubber airbags, when lifting to a certain height, will be the first to reach the ship under the winch tows. Barge bottom flat type, such as airbags and bottom contact area large, if the ship hull weight was small, as long as there is difficulties, from the first feeding can be from one side to the other string into a airbag.



When the hull weight is bigger, according to certain spacing increase 1 to 2 or more air bags, until lift up first. First a "v" shaped powerboat, often because of the air bag and the bottom contact area is too small lifting force is not enough, would require airbag back, sometimes want to back a quarter of the captain to lift up the bow.



Start the winch, the ship started to move, one by one according to the requirements of air bag placed spacing feeding airbags, always pull the boat to the berth.



Lifting vessels in conjunction with the salvage lifting air bag together, playing hard block,  withdraw the  air bags.



Inflatable Marine Salvage Lift Bags Marine Salvage Tube Cylindrical Roller Body 0





Specification



Diameter Safe working pressure Work high The bearing capacity
KN/M T/M
D=1.5M 0.11MPa 0.9m 103.79 10.58
0.8m 121.06 12.34
0.7m 138.32 14.1
0.6m 155.59 15.86
0.5m 172.85 17.62
D=1.8M 0.09MPa 1.1m 99.08 10.1
1.0m 113.21 11.54
0.9m 127.33 12.98
0.8m 141.46 14.42
0.7m 155.59 15.86
0.6m 169.71 17.3
D=2.0M 0.08MPa 1.2m 100.65 10.26
1.1m 113.21 11.54
1.0m 125.76 12.82
0.9m 138.32 14.1
0.8m 150.88 15.38
0.7m 163.43 16.66
0.6m 175.99 17.94





Luhang company had been certificated by ISO9001:2009, CCS, DNV,GL and SGS. Luhang is a Qingdao Famous brand. Products had been approved by CCS, DNV.GL,BV,ABS. Customers are free worry of our products and can use them safely.From July 1st ,2002, we started carrying out <Qingdao Luhang Marine Airbag and Fender Factory Standard Lifting and Weight Loading Airbag > and from July 1st, 2004, we started carrying out <Qingdao Luhang Marine Airbag and Fender Factory Standard of Pneumatic Rubber Fender>The performance of our products exceeds China standards and Industry Standards.



Inflatable Marine Salvage Lift Bags Marine Salvage Tube Cylindrical Roller Body 1
