Flexible Launching Marine Air Bag Multi Layer Time And Physical Strength Saving

Flexible Launching Marine Air Bag Multi Layer Time And Physical Strength Saving

  • Flexible Launching Marine Air Bag Multi Layer Time And Physical Strength Saving
  • Flexible Launching Marine Air Bag Multi Layer Time And Physical Strength Saving
  • Flexible Launching Marine Air Bag Multi Layer Time And Physical Strength Saving
Flexible Launching Marine Air Bag Multi Layer Time And Physical Strength Saving
Product Details:
Place of Origin: CHINA
Brand Name: LUHANG
Certification: CCS,BV,LR,DNV,SGS,ABS
Model Number: LH-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: pallet
Delivery Time: 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 pieces per month
Contact Now
Detailed Product Description
Lifespan: 6-10 Years Warranty: 24 Months
Usage: Flexible Launching Technology Size: D1.5 M X L12m X 6layers
Logo: Customized Material: Natural Rubber + Cord Layers
High Light:

inflatable boat lift bags

,

boat pulling airbags

D1.5 m x L18m x 6layers Marine Air Bag For Ship Upgrading ,Launching

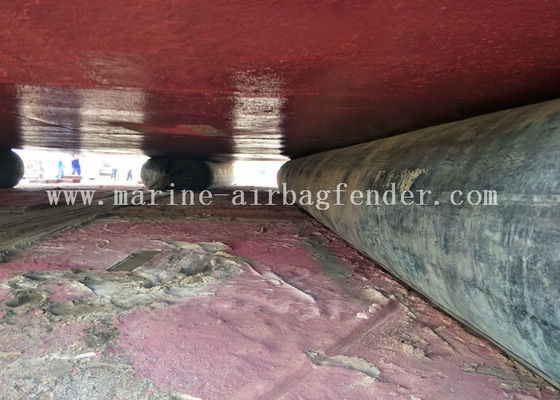

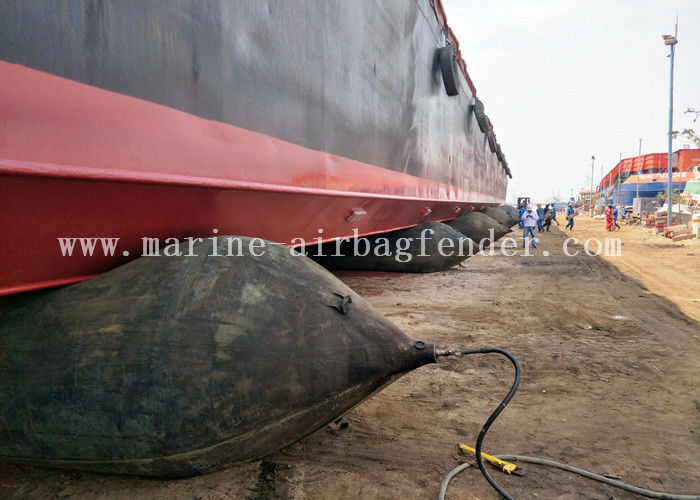

Ship launching using marine airbags is a very popular vessel launching method. It overcomes the shortcomings of the fixed launching track, which limits the productive capability of the small and medium sized shipyards. Now it has become a Flexible Launching Technology, having the merits of time and labor saving, flexibility, reliability and safety in operation and comprehensive economic benefits etc.

  • Saving the investment of shipyard construction
  • Simple operation, saving of labor and work hours
  • Environment friendly

After years of practice and accumulation of experience, we have developed the technology from launching only 1,000 DWT ships to current 100,000 DWT ships and we will achieve more. And now this technology has become a flexible, promising, secure and mature technology. Besides that, these airbags are widely used in slipping of ships and boats of all sizes.



Why Choose LUHANG Marine Airbags

  • 2 or 3-strand cords with great tensile strength
  • High quality rubber raw material
  • Superb quality and above average thickness for rubber layers
  • Strictly comply to the standard of ISO 14409:2001 (E) Ships and marine technology – Ship launching air bags

LUHANG Marine airbag production line



We buy raw material natural rubber(from Thailand,Vietnam,Yunnan), carbon black, SBR,etc.Then Mix them as the rates(which can make sure the performance of airbags and fenders),after machine mixing and calendering,then we can see the fabric rubber layer and rubber plate.Now the workers can use them to produce the airbags and fenders. After then,we send the products to the vulcanizer to finished vulcanization.Then we will inflate the products to check the air leakage.If no problem we will packing them to pallets,waiting to ship to u.



LUHANG Marine Rubber Airbag Application

  • Launching of 250-ton to 10,000-ton ships or boats. Sometimes even more
  • Launching of heavy large structures up to 10,000-tons
  • Hauling out of large marine structures including ships for repairs or recycle
  • Providing additional buoyancy for marine salvage projects or flotation needs (reducing draft of barges etc)
  • Transport heavy structures on land (a suitable alternative to transporters)

Marine Airbag Specification

  • The standard specification of marine airbags.

You can choose the required diameter and effective length to meet your projects.

★Diameter (D): from 0.5m to 5.0m.

★Effective Length (EL): from 5m to 30m.

★Total Length (TL): from 6m to 32m

The above specifications only are our standard specifications arrange. Can be supplied customized size upon customers’ request.

  • The standard number of layers

The number of layers, which mean the number of Synthetic-tyre-cord layer, usually, our airbags contain 3,4, 5, 6, 7, 8, 9,10 layers types. Other type is still available upon your request to confirm the Safety Working Pressure.



 LUHANG Marine Rubber Airbag Working pressure



type D=0.8m D=1.0m D=1.2m D=1.5m D=1.8m D=2.0
3layers 0.13MPa 0.10MPa 0.09MPa 0.07MPa 0.06MPa 0.05MPa
4layers 0.17MPa 0.13MPa 0.11MPa 0.09MPa 0.08MPa 0.07MPa
5layers 0.21MPa 0.17MPa 0.14MPa 0.11MPa 0.09MPa 0.08MPa
6layers 0.25MPa 0.20MPa 0.17MPa 0.13MPa 0.11MPa 0.10MPa
7layers 0.29MPa 0.23MPa 0.20MPa 0.15MPa 0.13MPa 0.12MPa
8layers 0.33MPa 0.26MPa 0.23MPa 0.17MPa 0.15MPa 0.14MPa





LUHANG Marine Rubber Airbags Advantages

  • High precision engineering using 2 or 3 -strand cords with great tensile strength.
  • Made from NEW industry leading quality rubber.
  • Assurance of true number of layers.
  • High-performance quality and above-industry-standard layer thickness.
  • Quality detailing jobs, Ex: air valve length, ends’ extra layering, tighter connection with minimal failure etc. These areas are often neglected but extremely important to ensure your safety and maximise your return by prolonging useful life.

Marine rubber airbags use matters needing attention



a. Working pressure control in our safe working pressure.

b. Avoid contact with sharp objects

c. when Long time not need , should wash to dry , placed in a cool dry ventilated place . Storage place away from heat , acid and alkali , oil and grease



LUHANG Certification



LUHANG Company has been Certificated by ISO 9001:2009, CCS, BV, SGS, GL, DNV.

Passed Environment Management System Certification, and OHSMS Certification.

LUHANG Products have been approved by CCS, BV, LR, DNV, GL, ABS, V-TRUST and other third party inspector.



Company Information



Qingdao Luhang Marine Airbag and Fender Company is the leading & professional & largest company that initiated airbags for ship launching in China from year of 1998. During 30 years’ development and experience in airbag production and ship launching, our ship launching airbags have become the most reliable. Since then, more cargo vessels, barges, chemical tankers, tugboats, AHTS vessels, floating docks, and even contstruction caissons have all been launched using our airbags. Aside from ship hauling & launching.
