Place of Origin: | China |
Brand Name: | Luhang |
Certification: | CCS/BV/SGS |
Model Number: | LHS |
Minimum Order Quantity: | 2 units |
---|---|
Price: | To be negotiated |
Packaging Details: | Folded on Pallets |
Delivery Time: | 10-15 work days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 Units per Month |
Features: | Air Tight, Flexible, Safe | Name: | Marine Salvage Airbags For Refloating Vessels |
---|---|---|---|
Material: | Mixed Rubber And Cord Net | Size: | As Per Requirement |
Application: | Salvage And Refloating | Lifespan: | 6 Years |
Highlight: | marine salvage air lift bags,underwater salvage air lift bags |
3m x 10m High Pressure Marine Salvage Airbags for Refloating Vessels
Qingdao Luhang is a leading and professional manufacturer of marine salvage airbags. They are widely used in salvaging sinked vessels or ships or refloating large and heavy objects from underwater. They are also called salvage air bags, salvage balloons, refloating airbags, refloating air bags or refloating balloons. They will be equipped with bondage belts or cord net around them and fixed around the shipes or heavy objects. After inflation, the salvage airbag has certain buoyance to displace the water and float the sinked vessels up to the water. The selecion of airbags is based on the salvage requirement: the vessel weight, size and how to fix. The airbags can be made maximum to Dia 3m and 24m long.
The buoyance of some airbags of different sizes
Effective Length (m) | Marine Salvage Airbags Maximum Buoyance at Full Inflation (tons) | ||||||
D=1.0m | D=1.2m | D=1.5m | D=1.8m | D=2.0m | D=2.5m | D=3.0m | |
5 | 3.93 | 5.65 | 8.84 | 12.72 | 15.71 | 24.54 | 35.41 |
8 | 6.28 | 9.05 | 14.14 | 20.36 | 25.13 | 39.27 | 56.55 |
10 | 7.85 | 11.31 | 17.67 | 25.45 | 31.42 | 49.09 | 70.69 |
12 | 9.42 | 13.57 | 21.21 | 30.54 | 37.7 | 58.9 | 84.82 |
15 | 11.78 | 19.69 | 26.51 | 38.17 | 47.12 | 73.63 | 106.03 |
18 | 14.14 | 20.36 | 31.81 | 45.8 | 56.55 | 88.36 | 127.23 |
20 | 15.71 | 22.62 | 35.34 | 50.89 | 62.83 | 98.18 | 141.37 |
24 | 18.85 | 27.14 | 42.41 | 61.07 | 75.4 | 117.81 | 169.65 |
Maine Features of Marine Salvage Airbags
1. Flexbile for different salvaging projects in sizes and buoyance adjustment
2. Saving Cost: airbags can be used repeated
3. Heavy Duty: salvage airbags are capable to bear high pressure because they are made of multi-layers reinforced with nylon cords. They can be used more than 10m under water.
4. Equipped with necessories such as inflation pressure gauge, bondage belts, shackles for fixing.
The Construction and Material of Marine Salvage Airbags
The airbag wall is constructed with layers of rubbers plates. The inner layers are reinforced with nylon cord net. These layers support the airbag with bearing strength when the airbag is inflated. More layers the airbag wall has, greater strength the airbag has. And the nylon cord net plays a critical role in strength. Besides the cord reinforced layers, there is one extra layer without cord net outside the wall. This rubber layer has a function of anti-wear and anti-aging. To maximize the function of the inner layers and the exterior layer, the rubber material is specially optimized with suitable mixing formulas.

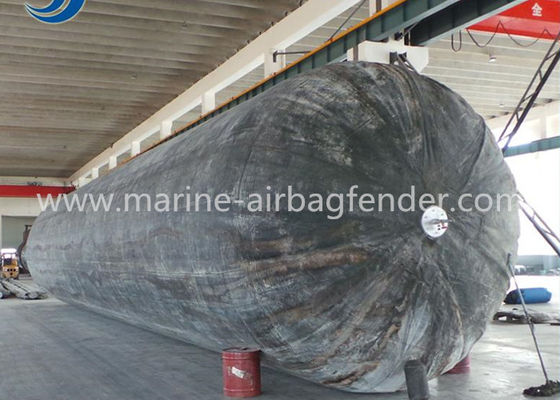

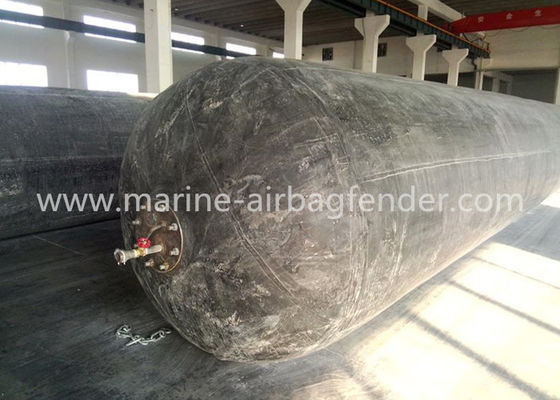

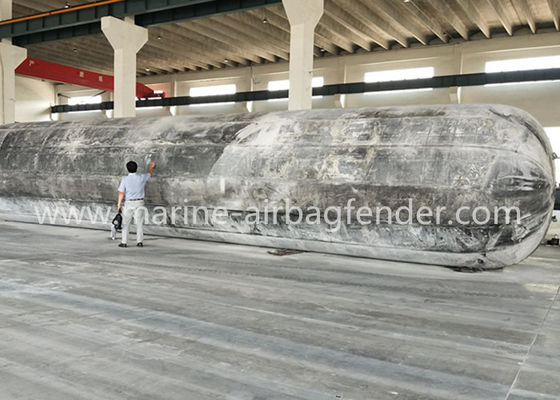

The Pictures of Marine Salvage Airbags and the Salvage Site
Qingdao Luhang Marine Airbag and Fender Co., Ltd. is the leading & professional manufacturer of marine equipments in China, which locates in Qingdao and has been specializing in producing marine airbags for ship launching and marine salvage and all kinds of marine fenders since 1988.
With the rapid business progress of marine airbag and fender products in the world, we have built a Group Company in 2011 getting some investment and enhanced our registered capital to US$5,000,000 (USD 5 million). We believe we company will have a better growth rate by supplying the best quality of marine airbag and fender products with the reasonable price.
Welcome friends from all over the world to our company! Looking forward to being your friend and best supplier on marine airbag and fender products!
