|Place of Origin:||China|
|Minimum Order Quantity:||1 Unit|
|Price:||To be Negotiated|
|Packaging Details:||Inflated or Deflated on Pallet|
|Delivery Time:||10-15 Work Day|
|Payment Terms:||T/T, L/C|
|Supply Ability:||30 Units Per Month|
|Name:||Ship To Ship Berthing Pneumatic Rubber Marine Fender||Application:||Ship To Ship Or Ship To Dock Berthing|
|Model:||Pneumatic Or Inflatable||Structure:||With Chain Tyre Net|
|Feature:||No Air Leakage, Low Reaction||Life Span:||10 Years|
boat dock fenders,
commercial boat fenders
2m x 3.5m 50kPa Ship to Ship Berthing Pneumatic Rubber Marine Fender
As the first developer and manufacturer of Pneumatic Marine Fenders in China, Qingdao Luhang has devoted itself to manufacturing of Pneumatic Rubber Marine Fenderes for more than 2 decades. Our Pneumatic Fenders have all standard sizes from baby sizes of 0.5m x 1m to jumbo sizes of 4.5m x 9m thanks to the only one largest vulcanization tank in China.
General Introduction of Luhang Pneumatic Marine Fender
Pneumatic rubber fenders can play an important role in ships’ safe berthing operation. Essentially there are two main types of floating pneumatic rubbers, defined as either low or high pressure fenders. Pneumatic rubber fenders are made of synthetic-cord-reinforced rubber sheets with compressed air inside at initial pressure of 50kPa (low pressure) or 80kPa (high pressure) to enable it to float on water and work as a shock absorber between two ships or between ship and a dock. Although manufactured using different techniques, both low and high pressure fenders work by the same principle.
Features of Luhang Pneuamtic Marine Fenders
1. Easy and fast to deploy
2. Very low reaction and hull pressure
3. Suitable for small and large tidal ranges
4. Maintains large clearance between hull and structure
5. Economical solutions
6. Easily deflateable to be used in different locations and to be stocked on deck of vessels
7. Built as per ISO 17357-1:2014
Standard Sizes and Performance of Luhang Pneumatic Marine Fender
These 2 factors are the critical to show the performace of a pneumatic fender. Fenders of 50kPa and 80kPa have their different performace at a compression of 60%. Below is a data table of 50kPa and 80kPa of different standard sizes.
|Fender Size||50kPa at 60% compression||80kPa at 60% compression|
|GEA KJ||RF KN||GEA KJ||RF KN|
|0.5m x 1m||6||64||8||80|
|0.7m x 1.5m||17||137||21||171|
|1.0m x 1.5m||32||181||40||266|
|1.35m x 2.5m||100||426||125||533|
|1.5m x 3.0m||153||579||191||724|
|2.0m x 3.5m||308||875||385||1094|
|2.5m x 4.0m||663||1380||829||1725|
|3.0m x 5.0m||1050||2030||1313||2538|
|3.3m x 6.5m||1814||3015||/||/|
|4.5m x 9.0m||4752||5747||/||/|

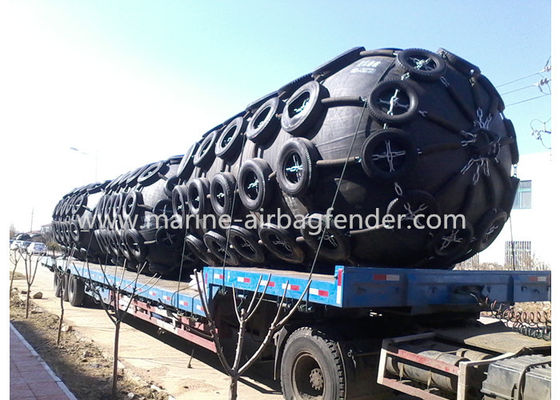

Pictures of Our Pneumatic Marine Fenders and Our Projects
Why Choose Luhang company and our pneumatic rubber fenders?
1. Luhang is the first one and professional manufacturer of pneumatic rubber fendes with more than 20 years of developing and production experience
2. Credible company to make pneumatic rubber fenders with optimzied rubber material, enough sizes and enough layers
3. ISO certificated with a number of patents on products
4. Pneumatic rubber fenders have been inspected and approved by Third-Party like CCS, BV, SGS, V-Trust etc with excellent performance of high energy absorption and low force reaction and airtightness.
5. Satisfying and timely after-sale service: In case of any quality claims during the warranty period, we will carry out the Three Guarantees for repair, replacement and compensation of faulty pneumatic rubber fenders.
Qingdao Luhang Marine Airbag and Fender Co., Ltd. is the leading & professional manufacturer of marine equipment: marine airbags, marine fenders, marine buoys in China, which locates in Qingdao and has been specializing in producing ship air bags and all kinds of marine fenders since 1988.
With the rapid business progress of marine airbag and fender products in the world, we have built a Group Company in 2011 getting some investment and enhanced our registered capital to US$5,000,000 (USD 5 million). We believe we company will have a better growth rate by supplying the best quality of marine airbag and fender products with the reasonable price.
Welcome friends from all over the world to our company! Looking forward to being your friend and best supplier on marine airbag and fender products!
Please do not hesitate to drop us a message here or send us an email for inquiry about our pneumatic fenders if you have any demand.
Mr. Novid Liu
Mobile: 0086 186 61897329 or 139 5321 3468
WeChat: 0086 139 5321 3468
Whatsapp: 0086 139 5321 3468
Any inquiry will be responded or replied within 24 hours.
Contact Person: Novid Liu
