| Place of Origin: | CHINA |
| Brand Name: | LUHANG |
| Certification: | CCS,BV,LR,ABS |
| Model Number: | Donut Fender |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic film winding |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
| Supply Ability: | 300 Units Per Month |
| Name: | Donut Fender | Material: | EVA Foam PU Coating |
|---|---|---|---|
| Specification: | Customized | Application: | Bridge Protection |
| Color: | Red,white,yellow,grew,black,orange,ect | Lifespan: | 10 Years |
| High Light: | Marine Guard Donut Fender,EVA Foam Donut Fender,PU Coating Donut Fender |
||

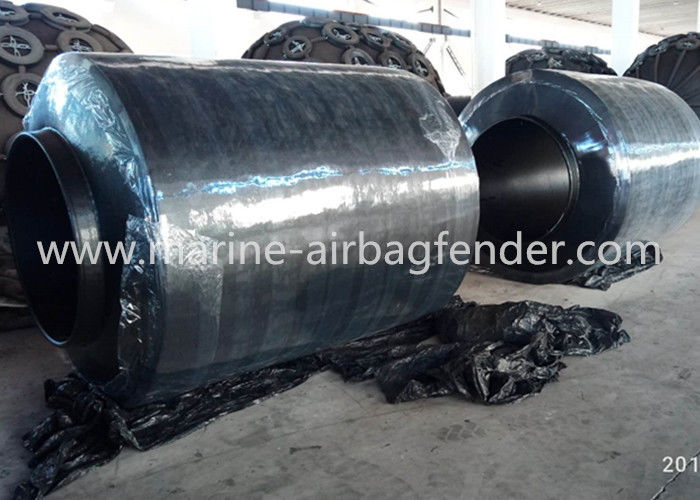

Marine Guard Donut Fender EVA Foam PU Coating Bridge Protection
Donut Fender Features
·Breasting Dolphins
·Bridge protection
·Corner protection
·Dock fendering where large tidal changes occur
·Dock fendering where vessels need roll along fenders for loading
·Ferry vessel applications
·Lock entrance
Donut Fender specifications
| Capacity | Standard Capacity* | ||
| Donut Size D [mm] |
Max. pile dia. [mm] |
Energy [kNm] |
Reaction [kN] |
| 1270 | 610 | 7,2 | 116 |
| 1450 | 710 | 9,2 | 131 |
| 1520 | 762 | 10,5 | 140 |
| 1780 | 914 | 14,1 | 162 |
| 1910 | 995 | 16,4 | 175 |
| 2030 | 1,067 | 18,6 | 186 |
| 2210 | 1,185 | 22,3 | 204 |
| 2290 | 1,219 | 23,6 | 210 |
| 2490 | 1,345 | 28,0 | 229 |
| 2540 | 1,372 | 29,3 | 234 |
| 2790 | 1,524 | 35,3 | 256 |
| 2790 | 1,639 | 40,1 | 273 |
| 3050 | 1,676 | 42,1 | 280 |
| 3300 | 1,829 | 49,5 | 304 |
| 3450 | 1,933 | 54,6 | 319 |
| 3530 | 1,981 | 57,2 | 327 |
| 3810 | 2,134 | 65,9 | 350 |
| 3960 | 2,241 | 72,1 | 366 |
| 4060 | 2,286 | 75,1 | 374 |
| 4220 | 2,388 | 81,3 | 389 |
LUHANG Certification
LUHANG Company has been Certificated by ISO 9001:2009, CCS, BV, SGS, GL, DNV.
Passed Environment Management System Certification, and OHSMS Certification.
LUHANG Products have been approved by CCS, BV, LR, DNV, GL, ABS, V-TRUST and other third party inspector.
