|Place of Origin:||China|
|Model Number:||50 KPa|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Plastic film winding|
|Delivery Time:||5 work days|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||300 units per month|
|Material:||Natural Rubber||Size:||D 3.3m*L6.5m|
|Energy Absorption:||1814 KJ||Reaction Force:||3015 KN|
|Aplication:||Ship Berthing Protection||Standard:||ISO 17357|
rubber dock fender,
cylinder rubber fender

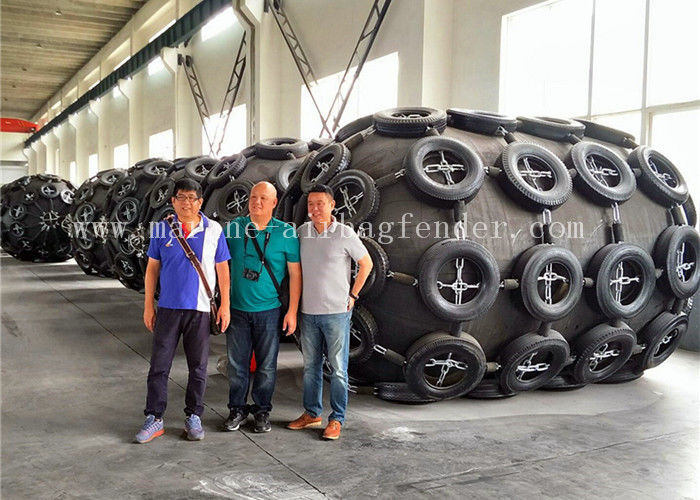

D 3.3m*L6.5m Marine Pneumatic Natural Rubber Fender Protective Bumper
LUHANG is a trusted manufacturer for ISO17357 pneumatic rubber fender/pneumatic fender/boat fenders , a leading anti-collision device for marine application in the world today . These compressed air fenders serve as protective medium against collision during ship-to-ship contact (STS) and ship-to-berthing (STB) . A pneumatic fender has the advantages of massive energy absorption with low unit surface pressure acted upon the ship. It has become an ideal ship protection medium used extensively by large tankers, LPG vessels , ocean platforms , large docks , harbour and wharfs . The most appropriate type will depend on its application and the requirements of the equipment/facilities .
1. The advantages of LUHANG pneumatic rubber fender
· ISO17357 standard guidelines ensure superior product quality
· High precision design engineering & advanced manufacturing processes
· High-performance guarantee
· 24-hour emergency response support
· Professional technical advice & engineering support
· Reputable global marine third party inspection options available.
2. Structure characteristics of the pneumatic rubber fender
A. the outer rubbers are used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.
B. the reinforcement synthetic-tyre-cord layer strong enough to maintain the internal air pressure of the fender.
C. the inner rubber layer seals the pressurized air inside the fender.
3. The purpose of the pneumatic rubber fender
3.1 ship to ship berthing
Accompanied by a large ship, the risk of two ship berthing at sea is also increased, especially when the weather changes, accompanied by wind and waves.Adopt pneumatic fender as side of the buffer, not only make heavy berthing becomes easy, and improve the efficiency of the transportation operations. Pneumatic fender is mainly used for: Ice in the Antarctic ocean fishing ships, large oil tanker berthing.
3.2 Used for terminal dock protection
Of the ship is very large, the cause of berthing impact energy have multiplied. Inflatable rubber fender because of its high energy absorption and low reaction force features are widely used.
3.3 used for oil drilling platform
4. Pneumatic rubber fender use matters needing attention
a. Pneumatic pressure control in±5% of the rated pressure
b. Test pressure normally, add pressure in a timely manner
c. Avoid contact with sharp objects
d. when Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.
e. Storage place away from heat, acid and alkali, oil and grease
f. when store, shall not be folded and piled up
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
2. How about the warranty ?
We have 2 years warranty and lifelong maintenance
3. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
