Place of Origin: | CHINA |
Brand Name: | LUHANG |
Certification: | CCS,BV,LR,ABS |
Model Number: | 50 KPa |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | Pallet |
Delivery Time: | 5 work days |
Payment Terms: | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
Supply Ability: | 300 Units Per Month |
Material: | Natural Rubber | Size: | D1.5m*L3.0m |
---|---|---|---|
Energy Absorption: | 153 KJ | Reaction Force: | 579 KN |
Standard: | ISO 17357 | Application: | Ideal Ship Protection Medium Pneumatic Marine Fender |
Highlight: | boat dock fenders,commercial boat fenders |

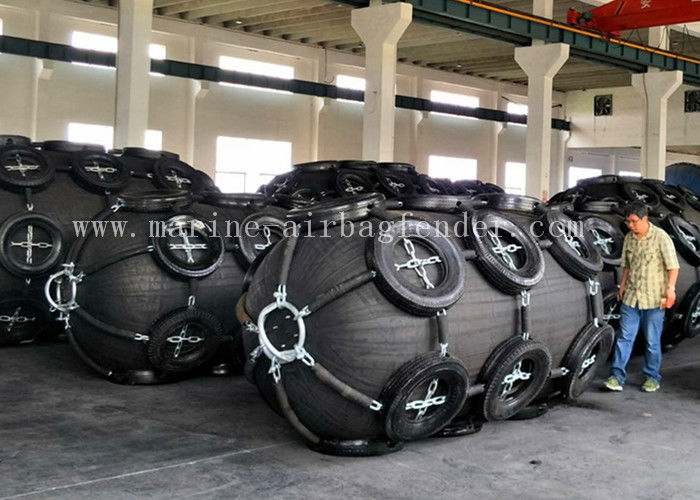

D1.5m*L3.0m Ideal Ship Protection Medium Pneumatic Marine Fender
pneumatic floating fenders become an ideal ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbour and wharf. Exported to many countries like Germany, Norway, Argentina, Vietnam, Brazil, America, Denmark, Finland, Indonesia, Singapore, Philippines, Belgium, Chile, Colombia, Croatia and more.
High product quality and reasonable costing drives their adoption in the global market and are increasingly preferred as the No.1 alternative to the Yokohama brand.
The advantages of LUHANG pneumatic rubber fender
Structure characteristics of the pneumatic rubber fender
Normal size and customized size availiable
Luhang 50KPa fender | |||
Size(mm) | compression at 60% | ||
Dia-meter |
length
|
Energy absorption(KJ) | Reaction Force(KN) |
200 | 500 | ||
300 | 500 | ||
500 | 1000 | 6 | 64 |
600 | 1000 | 8 | 72 |
600 | 1200 | 10 | 86 |
700 | 1500 | 17 | 137 |
1000 | 1500 | 32 | 181 |
1000 | 2000 | 45 | 257 |
1200 | 2000 | 63 | 297 |
1350 | 2500 | 100 | 426 |
1500 | 3000 | 153 | 579 |
1700 | 3000 | 190 | 637 |
2000 | 3500 | 308 | 875 |
2500 | 4000 | 663 | 1380 |
2500 | 5500 | 932 | 2010 |
3000 | 5000 | 1050 | 2030 |
3000 | 6000 | 1315 | 2488 |
3300 | 4500 | 1255 | 2087 |
3300 | 6500 | 1814 | 3015 |
3500 | 6000 | 2018 | 3286 |
3500 | 6500 | 2325 | 3656 |
3500 | 7500 | 2650 | 4018 |
4500 | 9000 | 4752 | 5747 |
The purpose of the pneumatic rubber fender
Accompanied by a large ship, the risk of two ship berthing at sea is also increased, especially when the weather changes, accompanied by wind and waves.Adopt pneumatic fender as side of the buffer, not only make heavy berthing becomes easy, and improve the efficiency of the transportation operations. Pneumatic fender is mainly used for: Ice in the Antarctic ocean fishing ships, large oil tanker berthing.
Of the ship is very large, the cause of berthing impact energy have multiplied. Inflatable rubber fender because of its high energy absorption and low reaction force features are widely used.
When Oil tanker berthing to the oil drilling platform,we need fenders to protect both parts.
Pneumatic rubber fender use matters needing attention
LUHANG Certification
LUHANG Company has been Certificated by ISO 9001:2009, CCS, BV, SGS, GL, DNV.
Passed Environment Management System Certification, and OHSMS Certification.
LUHANG Products have been approved by CCS, BV, LR, DNV, GL, ABS, V-TRUST and other third party inspector.
