Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net

Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net

  • Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net
  • Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net
  • Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net
Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net
Product Details:
Place of Origin: China
Brand Name: Luhang
Certification: CCS/BV/SGS
Model Number: LH2555
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: To be Negotiated
Packaging Details: Inflated or Deflated on Pallet
Delivery Time: 10-15 Work Day
Payment Terms: T/T, L/C
Supply Ability: 30 Units Per Month
Contact Now
Detailed Product Description
Name: Ship To Ship Transfer Marine Pneumatic Rubber Fender Application: Port, Oil And Gas
Model: Pneumatic Or Inflatable Structure: With Chain Tyre Net
Feature: No Air Leakage, Low Reaction Standard: ISO17357-2014
Highlight:

rubber dock fender

,

cylinder rubber fender

2.0m x 3.5m 50kPa Ship to Ship Transfer Marine Pneumatic Rubber Fender



Pneumatic rubber fenders are ideal for permanent and semi-permanent port and ship-to-ship transfers requiring minimal maintenance, so costs are kept down.Marine Pneumatic rubber fenders can play an important role in ships’ safe berthing operation. Essentially there are two main types of floating pneumatic rubbers, defined as either low or high pressure fenders. Pneumatic rubber fenders are made of synthetic-cord-reinforced rubber sheets with compressed air inside at initial pressure of 50kPa (low pressure) or 80kPa (high pressure) to enable it to float on water and work as a shock absorber between two ships or between ship and a dock. Although manufactured using different techniques, both low and high pressure fenders work by the same principle.



Standard Sizes and Performance of Rubber Pneumatic Marine Fender



These 2 factors are the critical to show the performace of a rubber pneumatic fender. Fenders of 50kPa and 80kPa have their different performace at a compression of 60%. Below is a data table of 50kPa and 80kPa of different standard sizes.



Fender Size 50kPa at 60% compression 80kPa at 60% compression
  GEA KJ RF KN GEA KJ RF KN
0.5m x 1m 6 64 8 80
0.7m x 1.5m 17 137 21 171
1.0m x 1.5m 32 181 40 266
1.35m x 2.5m 100 426 125 533
1.5m x 3.0m 153 579 191 724
2.0m x 3.5m 308 875 385 1094
2.5m x 4.0m 663 1380 829 1725
3.0m x 5.0m 1050 2030 1313 2538
3.3m x 6.5m 1814 3015 / /
4.5m x 9.0m 4752 5747 / /































Features of Luhang Rubber Pneuamtic Marine Fenders



1. Easy and fast to deploy

2. Very low reaction and hull pressure

3. Suitable for small and large tidal ranges

4. Maintains large clearance between hull and structure

5. Economical solutions

6. Easily deflateable to be used in different locations and to be stocked on deck of vessels

7. Built as per ISO 17357-1:2014



Types and Structure of Rubber Pneumatic Rubber Fenders



There are 2 typical pneumatic rubber fenders: net type fender and sling type fender.

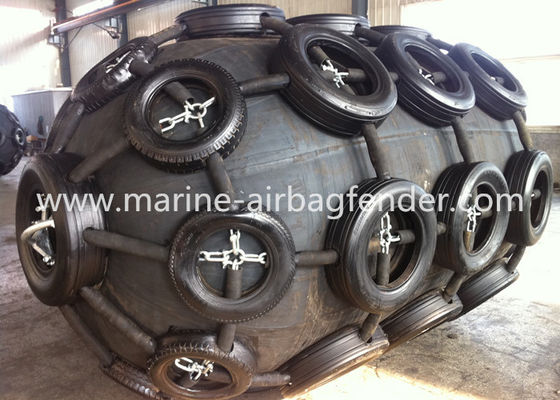

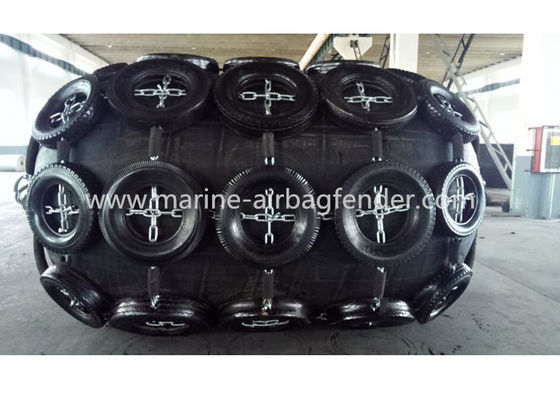

Net type fender is a fender covered with a protetion net consisting of either chain, wire, or rope and usually with tyres and rubber sleeves.



Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net 0

Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net 1

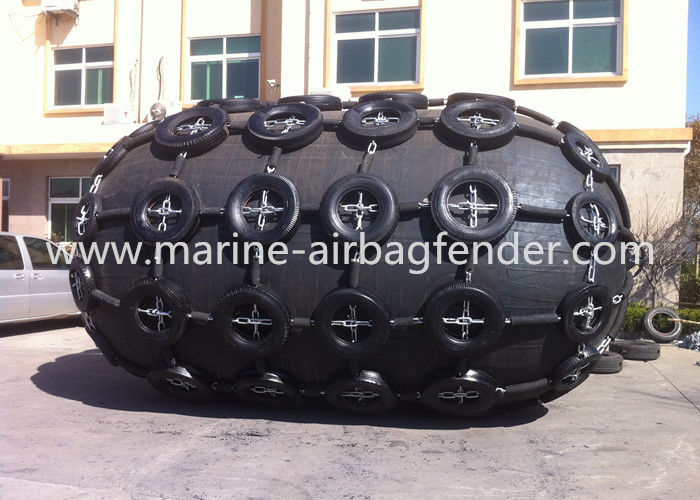

Pictures of Our Pneumatic Marine Fenders  and Our Projects



Ship To Ship Pneuamtic Rubber Fenders 2.0m*3.5m 50kPa With Chain Tyre Net 2



FAQ:


Q1. How to select pneumatic fenders for a vessel or a project?

A: The selection of pneumatic rubber fenders is based on the requirement of energy absorption. Energy Absoprtion of a fender depends on the diameter, length and initial pressure. Pneumatic rubbers fenders can be selected and ordered as per your previous sizes and quantity. In case of buying new fenders for a new vessel or a new project, you need provide us with following information so that we can figure out the suitable sizes and quantity for the vessel or projects.

1. Vessel Information Size, Weight, Type
  • Dock Informaiton
Length, Tide,
  • Fender size
Diameter and Length
  • Intitial Pressure
50kPa or 80kPa
  • Fender type
Net type fender or Sling type fender



Q2. How long is the lead time of an order?

A: Usually we finish the production of a normal order within 15 days. The lead time of special orders with large quantity or urgent delivery requirement should be confirmed before order confirmation.

Q3. Do you supply to replace a new chain-tyre net and repair material and tools and teach us how to repair?

We can specially supply to replace chain-tyre-net for fenders. As per customer’s request, we would like to supply repair meterial: rubber plates and repair tools: auto heater. We would like to send complete videos on airbag repair to customers for them to learn.

Q4. What is the after-sale service?

We carry out the Three Guarantees for repair, replacement and compensation of faulty fenders within warranty period.



Why Choose Luhang company and our pneumatic rubber fenders?



1. Luhang is the first one and professional manufacturer of pneumatic rubber fendes with more than 20 years of developing and production experience

2. Credible company to make pneumatic rubber fenders with optimzied rubber material, enough sizes and enough layers

3. ISO certificated with a number of patents on products

4. Pneumatic rubber fenders have been inspected and approved by Third-Party like CCS, BV, SGS, V-Trust etc with excellent performance of high energy absorption and low force reaction and airtightness.

5. Satisfying and timely after-sale service: In case of any quality claims during the warranty period, we will carry out the Three Guarantees for repair, replacement and compensation of faulty pneumatic rubber fenders.
