|Place of Origin:||China|
|Minimum Order Quantity:||1 Unit|
|Price:||To be Negotiated|
|Packaging Details:||Inflated or Deflated on Pallet|
|Delivery Time:||10-15 Work Day|
|Payment Terms:||T/T, L/C|
|Supply Ability:||30 Units Per Month|
|Name:||Low Reaction Marine Pneumatic Floating Rubber Fender||Application:||Port, Oil And Gas, Temperary Berthing|
|Model:||Pneumatic Or Inflatable||Structure:||With Chain Tyre Net|
|Feature:||No Air Leakage, Low Reaction||Standard:||ISO17357-2014|
rubber dock fender,
cylinder rubber fender
2.5m x 4.0m 50kPa Low Reaction Marine Pneumatic Floating Rubber Fender
Pneumatic rubber Floating Marine Fenders are ideal for permanent and semi-permanent port and ship-to-ship transfers requiring minimal maintenance, so costs are kept down.Marine Pneumatic rubber fenders can play an important role in ships’ safe berthing operation. Essentially there are two main types of floating pneumatic rubbers, defined as either low or high pressure fenders. Pneumatic rubber fenders are made of synthetic-cord-reinforced rubber sheets with compressed air inside at initial pressure of 50kPa (low pressure) or 80kPa (high pressure) to enable it to float on water and work as a shock absorber between two ships or between ship and a dock. Although manufactured using different techniques, both low and high pressure fenders work by the same principle.
Applications of Pneumatic Floating Rubber Fender
1. In ports with extreme tidal variations
2. Ship-to-ship lightering operations
3. Oil and Gas
4. Temperary berthing between ships and ship to dock
5. Rapid response and emergencies
Standard Sizes and Performance of Rubber Pneumatic Marine Fender
These 2 factors are the critical to show the performace of a rubber pneumatic fender. Fenders of 50kPa and 80kPa have their different performace at a compression of 60%. Below is a data table of 50kPa and 80kPa of different standard sizes.
|Fender Size||50kPa at 60% compression||80kPa at 60% compression|
|GEA KJ||RF KN||GEA KJ||RF KN|
|0.5m x 1m||6||64||8||80|
|0.7m x 1.5m||17||137||21||171|
|1.0m x 1.5m||32||181||40||266|
|1.35m x 2.5m||100||426||125||533|
|1.5m x 3.0m||153||579||191||724|
|2.0m x 3.5m||308||875||385||1094|
|2.5m x 4.0m||663||1380||829||1725|
|3.0m x 5.0m||1050||2030||1313||2538|
|3.3m x 6.5m||1814||3015||/||/|
|4.5m x 9.0m||4752||5747||/||/|
Features of Luhang Rubber Pneuamtic Marine Fenders
1. Easy and fast to deploy
2. Very low reaction and hull pressure
3. Suitable for small and large tidal ranges
4. Maintains large clearance between hull and structure
5. Economical solutions
6. Easily deflateable to be used in different locations and to be stocked on deck of vessels
7. Built as per ISO 17357-1:2014
Types and Structure of Rubber Pneumatic Rubber Fenders
There are 2 typical pneumatic rubber fenders: net type fender and sling type fender.

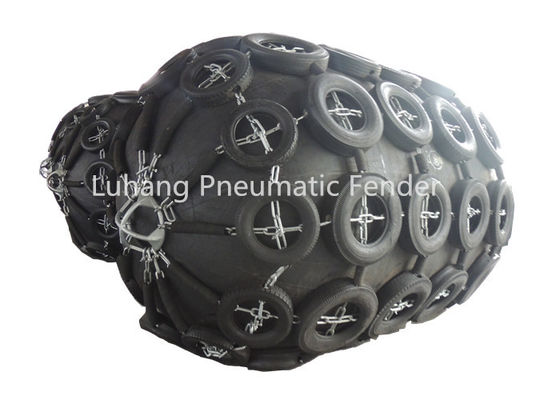

Net type fender is a fender covered with a protetion net consisting of either chain, wire, or rope and usually with tyres and rubber sleeves.
Pictures of Our Pneumatic Marine Fenders and Our Projects
Q1. How to select pneumatic fenders for a vessel or a project?
A: The selection of pneumatic rubber fenders is based on the requirement of energy absorption. Energy Absoprtion of a fender depends on the diameter, length and initial pressure. Pneumatic rubbers fenders can be selected and ordered as per your previous sizes and quantity. In case of buying new fenders for a new vessel or a new project, you need provide us with following information so that we can figure out the suitable sizes and quantity for the vessel or projects.
|1. Vessel Information||Size, Weight, Type|
||Diameter and Length|
||50kPa or 80kPa|
||Net type fender or Sling type fender|
Q2. How long is the lead time of an order?
A: Usually we finish the production of a normal order within 15 days. The lead time of special orders with large quantity or urgent delivery requirement should be confirmed before order confirmation.
Q3. Do you supply to replace a new chain-tyre net and repair material and tools and teach us how to repair?
We can specially supply to replace chain-tyre-net for fenders. As per customer’s request, we would like to supply repair meterial: rubber plates and repair tools: auto heater. We would like to send complete videos on airbag repair to customers for them to learn.
Q4. What is the after-sale service?
We carry out the Three Guarantees for repair, replacement and compensation of faulty fenders within warranty period.
Why Choose Luhang company and our pneumatic rubber fenders?
1. Luhang is the first one and professional manufacturer of pneumatic rubber fendes with more than 20 years of developing and production experience
2. Credible company to make pneumatic rubber fenders with optimzied rubber material, enough sizes and enough layers
3. ISO certificated with a number of patents on products
4. Pneumatic rubber fenders have been inspected and approved by Third-Party like CCS, BV, SGS, V-Trust etc with excellent performance of high energy absorption and low force reaction and airtightness.
5. Satisfying and timely after-sale service: In case of any quality claims during the warranty period, we will carry out the Three Guarantees for repair, replacement and compensation of faulty pneumatic rubber fenders.
Qingdao Luhang Marine Airbag and Fender Co., Ltd. is the leading & professional manufacturer of marine equipment: marine airbags, marine fenders, marine buoys in China, which locates in Qingdao and has been specializing in producing ship air bags and all kinds of marine fenders since 1988.
With the rapid business progress of marine airbag and fender products in the world, we have built a Group Company in 2011 getting some investment and enhanced our registered capital to US$5,000,000 (USD 5 million). We believe we company will have a better growth rate by supplying the best quality of marine airbag and fender products with the reasonable price.
Welcome friends from all over the world to our company! Looking forward to being your friend and best supplier on marine airbag and fender products!
Please do not hesitate to drop us a message here or send us an email for inquiry about our pneumatic fenders if you have any demand.
