Place of Origin: | CHINA |
Brand Name: | LUHANG |
Certification: | CCS,BV,LR,ABS |
Model Number: | Mooring Buoy |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | container |
Delivery Time: | 10 work days |
Payment Terms: | L/C, T/T, D/P, D/A, Western Union, MoneyGram |
Supply Ability: | 300 sets Per Month |
Material: | Poly Foam | Specification: | Mooring Buoy With Steel Frame |
---|---|---|---|
Application: | Deep-sea Buoy | Color: | As Required |
Lifespan: | 10 Years | Warranty: | 24 Months |
Highlight: | boat dock buoys,boat anchor buoy |
TYPE OF MOORING BUOY
A) MOORING BUOY WITH STEEL FRAME
Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.
B) MOORING BUOY WITH REMOVABLE STEEL FRAME
Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.
C) THROUGH MOORING BUOY
Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.
D) ANGLED STEEL FRAME MOORING BUOY
Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.
E) FLOATING BARRIER MOORING BUOY
Buoys of 0.7t to 2t of buoyancy, designed for the mooring of anti-intrusion or anti-pollution barriers. These buoys will have a horizontal frame so to attach the barriers on its side, also with the normal top and bottom mooring points. Various options, elements, fixings are available.
SPECIFICATION

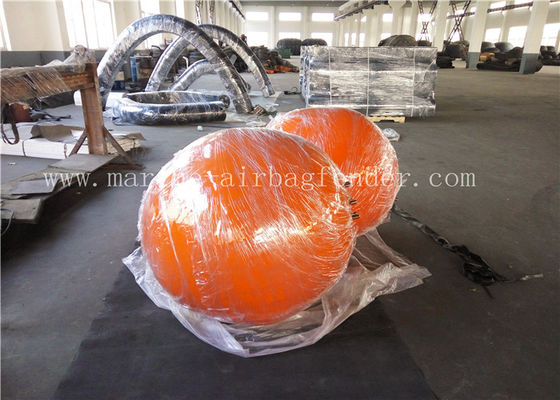

mooring buoys are typically made from a core of EVA foam which will recover its shape after compression, 100% closed cell of various densities depending on usage. Such foam will guaranty no water absorption in case of damage. It allows a compression of up to 60% of its original volume for short periods of time, to regain its shape, meaning they allow for energy absorption, such as a fender.
The choice of the foam density relies on setting up the best parameters between weight and its ability to compress (as the higher the density the less the buoyancy will be).
A conical shape on the bottom part will allow it to be more stable in the water.
LUHANG Certification
LUHANG Company has been Certificated by ISO 9001:2009, CCS, BV, SGS, GL, DNV.
Passed Environment Management System Certification, and OHSMS Certification.
LUHANG Products have been approved by CCS, BV, LR, DNV, GL, ABS, V-TRUST and other third party inspector.
