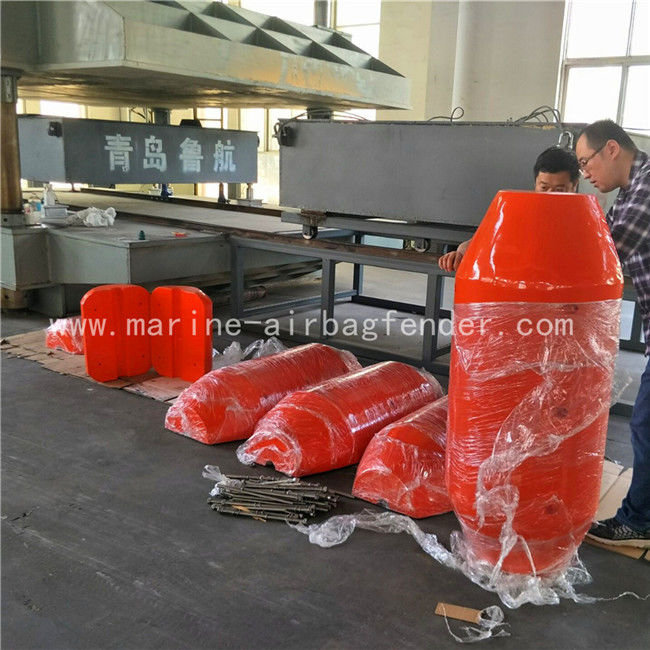

Bright Color Boat Dock Buoys Allow Energy Absorption With Bottom Conical Shape

Bright Color Boat Dock Buoys Allow Energy Absorption With Bottom Conical Shape

  • Bright Color Boat Dock Buoys Allow Energy Absorption With Bottom Conical Shape
  • Bright Color Boat Dock Buoys Allow Energy Absorption With Bottom Conical Shape
Bright Color Boat Dock Buoys Allow Energy Absorption With Bottom Conical Shape
Product Details:
Place of Origin: CHINA
Brand Name: LUHANG
Certification: CCS,BV,LR,ABS
Model Number: Mooring Buoy
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: container
Delivery Time: 10 work days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 300 sets Per Month
Contact Now
Detailed Product Description
Material: Poly Foam Specification: Mooring Buoy
Application: Shallow Sea Buoy Color: As Required
Lifespan: 10 Years Warranty: 24 Months
Highlight:

boat mooring buoy

,

boat dock buoys

EVA Foam Filled PU Coating Mooring Buoy In Bright Color As Required



TYPE OF MOORING BUOY



A) MOORING BUOY WITH STEEL FRAME

Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.



B) MOORING BUOY WITH REMOVABLE STEEL FRAME

Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.



C) THROUGH MOORING BUOY

Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.



D) ANGLED STEEL FRAME MOORING BUOY

Those buoys are for the mooring of vessels with variable displacement, tonnage and length – Total buoyancy ranging from 3t to 40t, more if required for specific usage – Either with a fixed through steel arrangement to distribute the forces from the mooring line or removable elements or bespoke steel work. Various options, elements, fixings are available.



E) FLOATING BARRIER MOORING BUOY

Buoys of 0.7t to 2t of buoyancy, designed for the mooring of anti-intrusion or anti-pollution barriers. These buoys will have a horizontal frame so to attach the barriers on its side, also with the normal top and bottom mooring points. Various options, elements, fixings are available.



SPECIFICATION



mooring buoys are typically made from a core of EVA foam which will recover its shape after compression, 100% closed cell of various densities depending on usage. Such foam will guaranty no water absorption in case of damage. It allows a compression of up to 60% of its original volume for short periods of time, to regain its shape, meaning they allow for energy absorption, such as a fender.

The choice of the foam density relies on setting up the best parameters between weight and its ability to compress (as the higher the density the less the buoyancy will be).

A conical shape on the bottom part will allow it to be more stable in the water.



LUHANG Certification



LUHANG Company has been Certificated by ISO 9001:2009, CCS, BV, SGS, GL, DNV.

Passed Environment Management System Certification, and OHSMS Certification.

LUHANG Products have been approved by CCS, BV, LR, DNV, GL, ABS, V-TRUST and other third party inspector.



LUHANG Company Information



Qingdao LuHang Marine Airbag and Fender Co., LTD,foundedin 1988, is the largest marine airbag and fender manufacturer in China.We have established long-term cooperation relationship with central enterprises, many big shipyards and ship owners, trading companies in China.
