| Place of Origin: | China |
| Brand Name: | Luhang |
| Certification: | ISO9001 |
| Model Number: | LHD |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | USD$1100~USD$2000 / pcs Negotiable |
| Packaging Details: | Film packing |
| Delivery Time: | 10~15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pcs / month |
| Material: | EVA Foam And Iron Steel | Color: | Black And Customize |
|---|---|---|---|
| Size: | Customize | Usuage: | Dolphins, Guiding And Turning Structures |
| Warrenty: | 2 Years | Name: | Turning Fender |
| High Light: | dock bumper fender,cylindrical rotational fender |
||

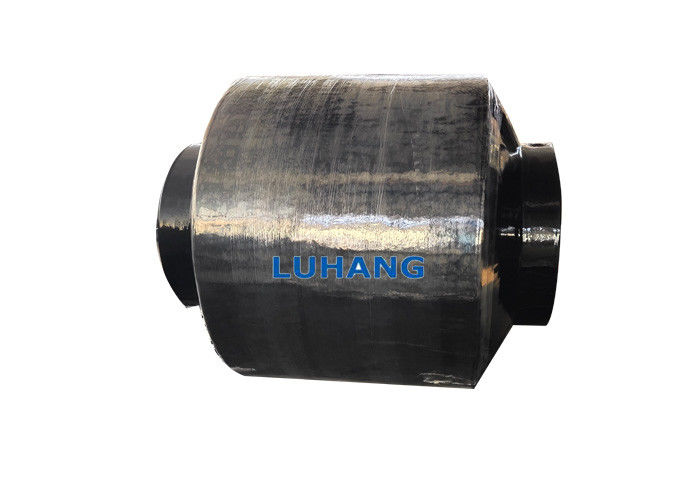

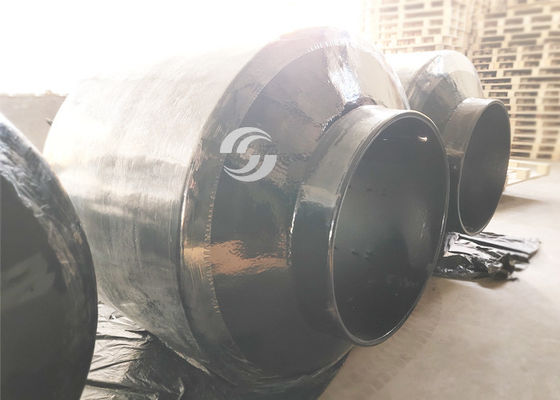

EVA Foam Cylindrical Iron Steel Dia 1.5m Polyurea Coating Donut Fender
The Cylindrical Donut Fender is a specific type of Foam Fenders. It is designed for simply slip over a stationary monopile. Due to its construction, the fender floats up and down with the tide levels and rotates when vessels berthing and slide along the fender. The Cylindrical Donut Fender is designed with a 100% closed cell eva foam core, a reinforced polyurea skin and low friction PE pads at the internal steel core.
Performance of normal size cylindrical donut fender
| Diameter mm | Max Pile mm | Energy kNm | Reaction kN | |
| 1270 | 610 | 7.1 | 114 | |
| 1450 | 710 | 9.2 | 131 | |
| 1520 | 762 | 10.4 | 140 | |
| 1780 | 914 | 14.0 | 162 | |
| 1910 | 995 | 16.4 | 175 | |
| 2030 | 1067 | 18.5 | 185 | |
| 2210 | 1185 | 22.1 | 206 | |
| 2290 | 1219 | 23.4 | 210 | |
| 2540 | 1370 | 29.1 | 234 | |
| 2970 | 1636 | 40 | 272 | |
| 3450 | 1932 | 54.4 | 318 | |
| 3960 | 2240 | 72 | 364 | |
| 4220 | 2386 | 81 | 387 |
Cylindrical donut fender is an effective fendering solution for the berthing dolphins, guiding rotational structures, and corner protection facilities. Donut fender is separated with the tubular pile. There is low friction bearings to the pad, which can ensure the donut fender float up and down and freely.
