| Place of Origin: | Qingdao, China |
| Brand Name: | LuHang |
| Certification: | CCS/BV/ABS/SGS |
| Model Number: | LH2540 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Inflated or Deflated on Pallet |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30 Units Per Month |
| Usuage: | Ship Mooring & Berthing | Name: | Marine Berthing Fender |
|---|---|---|---|
| Type: | Tire Chain Net Cover | Warrenty: | 24 Months |
| Life Span: | 6 ~ 12 Years | Material: | 60% Nature Rubber |
| Size: | Size Customize | Color: | Black |
| Part: | Pneumatic Rubber Fender | Part: | Pneumatic Rubber Fender |
| Feature: | No Air Leakage, Low Reaction, Low Cost | Type: | 50kPa Or 80kPa |
| Specification: | Dia 0.5m-4.5m, L 0.7m-9m/Customized | Certification: | CCS BV Certification ISO17357 ISO9001 |
| Application: | Application | Packing: | Nude Packing/As Requirement |
| Highlight: | Yokohama Ship Fenders, Yokohama Bumpers | ||
| Highlight: | yokohama marine fenders,yokohama bumpers |
||

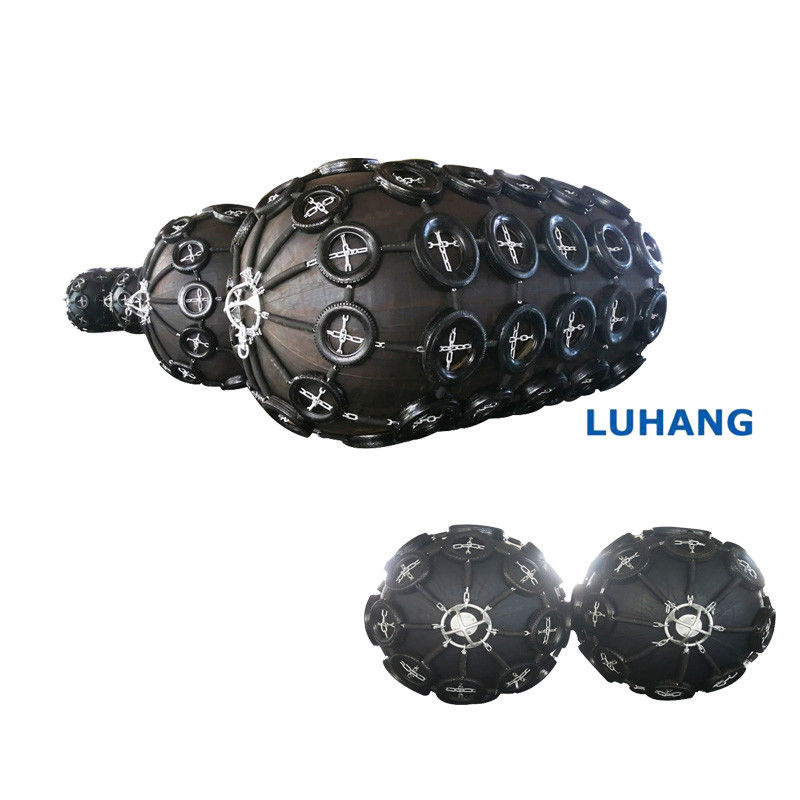

Yokohama Ship To Ship Rubber Fender 3.0m x 5.0m Marine Mooring Fender
Marine ships usually make initial contact with the dock or ship to ship operations at an oblique angle. By developing of the ocean shipping, the ships size are become larger and larger, In order to compensate for the decrease of energy absorption at inclined compression, it is necessary to use larger sizes' Yokohama pneumatic fenders.
Luhang Yokohama Pneumatic Fenders can be deflated completely, easy to storage. The big size pneumatic fenders over 2.5m diameters can be loaded into the normal container easily to save shipment.
Layer made of synthetic-tyre-cord fabric, which maintains the internal air pressure of the fender.
Performance sheet:
| Size(mm) | Compression at 60% |
Refence weight (KG) |
||
| Diameter | Leagth | Energy absorption(KJ) |
Reaction (KN) |
|
| 500 | 1000 | 6 | 64 | 25 |
| 600 | 1200 | 10 | 86 | 35 |
| 700 | 1500 | 17 | 137 | 50 |
| 1000 | 1500 | 32 | 181 | 80 |
| 1000 | 2000 | 45 | 257 | 100 |
| 1200 | 2000 | 63 | 297 | 120 |
| 1350 | 2500 | 100 | 426 | 170 |
| 1500 | 3000 | 153 | 579 | 320 |
| 1700 | 3000 | 190 | 637 | 400 |
| 2000 | 3500 | 308 | 875 | 590 |
| 2500 | 4000 | 663 | 1380 | 1000 |
| 2500 | 5500 | 932 | 2010 | 1400 |
| 3000 | 5000 | 1050 | 2030 | 1800 |
| 3000 | 6000 | 1315 | 2488 | 2200 |
| 3300 | 6500 | 1814 | 3015 | 2700 |
| 3500 | 6000 | 2018 | 3286 | 2800 |
| 3500 | 6500 | 2325 | 3656 | 3200 |
| 3500 | 7500 | 2650 | 4018 | 3600 |
| 4500 | 9000 | 4752 | 5745 | 6800 |
Our company:
Luhang established on 1988,we are China's professional manufacture of ship launching / salvage rubber airbags and ship berthing fenders. Our main products are pneumatic rubber fenders, rubber air bag,EVA foam fenders / buoys, solid rubber fenders etc.
Luhang company had been certificated by ISO9001:2009, CCS, DNV,GL and SGS. Luhang is a Qingdao Famous brand. Products had been approved by CCS, DNV.GL,BV,ABS. Customers are free worry of our products and can use them safely.
By advanced equipments, strictly QC, we supply high quality products and after sales service, and got widely appraised by domestic and overseas customers.
