ISO17357 Berthing Nylon Rubber Marine Boat Fenders

ISO17357 Berthing Nylon Rubber Marine Boat Fenders

ISO17357 Berthing Nylon Rubber Marine Boat Fenders
video
ISO17357 Berthing Nylon Rubber Marine Boat Fenders
Product Details:
Place of Origin: CHINA
Brand Name: Luhang
Certification: CCS,BV,LR,DNV
Model Number: 3.3m*6.5m
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Pallet
Delivery Time: within 15days
Payment Terms: T/T, L/C
Supply Ability: 300pcs/month
Contact Now
Detailed Product Description
Material: Nylon Rubber Color: Black,gray
Application: Floating And Berthing(ship To Ship Or Ship To Dock) Size: Customized Size
Product Name: Ship Yokohama Type Pneumatic Marine Rubber Fender Packing: By Wood Pallet
Standard: ISO17357
High Light:

Nylon Rubber Marine Boat Fenders

,

Berthing Marine Boat Fenders

,

ISO17357 Marine Boat Fenders

ISO17357 Berthing Nylon Rubber Marine Boat Fenders



Fender types:

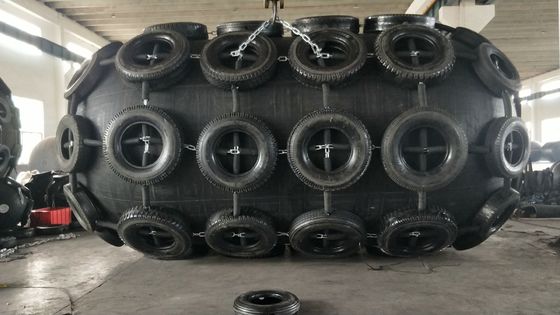

1.Net-type fenders: fenders which are covered by a tire chain net, each end shall be linked together with one to two ring(s).

2.Sling-type fender: fenders which are designed to be used without a protection net.



Initial internal pressure:

1.Pneumatic fender 50 (initial internal pressure 50 KPa)

2.Pneumatic fender 80 (initial internal pressure 80 KPa)



Pneumatic marine ship rubber fender application

Floating pneumatic marine ship rubber fender could be used as a protective medium for ship-to-ship operation(STS), ship-to-quay(STQ) and ship-to-berthing(STB). And suit for various vessels, like:



1. Tankers, Gas Carriers and Bulk Cargo Ships;

2. Fast ferries and aluminum hulled vessels;

3. Temporary of permanent installations;

4. Rapid response and emergency fendering;

5. As stand-off fenders to realign ships with shore facilities.

ISO17357 Berthing Nylon Rubber Marine Boat Fenders 0

How to install floating marine ship rubber fender?



Fix the lifting rope to the swivels on the fender’s chain lugs

Lift the fender well clear of the ground and any projections.

Lowering the fender into position

Connect the chains to the fender’s chain lugs.

Lower the fender to the water.

Fix the chains to the anchors on the quay wall.



floating pneumatic ship rubber fender structure

Floating marine ship rubber fender is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the water and work as a shock absorber between two ships, or between ships and berthing structures when they come alongside each other on the water.



The fender body is constructed of an inner rubber layer, reinforced cord layers and an outer rubber layer. All of these layers are vulcanized together.



The outer skin rubber compound is designed and manufactured to be able to withstand both strenuous use including abrasion during adverse weather conditions whilst protecting the cord layers and inner rubber.



The synthetic tyre cord layers are arranged and designed to distribute load and stress evenly, which maintains the internal air pressure of the fender.



The inner rubber compound is designed to be completely airtight, utilising a compound equivalent tothat an inner tube of a car tyre.

Normal Size Inner Pressure:50Kpa,60%deflection Inner Pressure:80Kpa,60%deflection
(mm) (mm) (KN) (KN.M) (Kpa) (KN) (KN.M) (Kpa)
Diameter Length Reaction Force Energy Absorption Hull Absorption Reaction Force Energy Absorption Hull Absorption
500 1000 64 6 132 85 8 174
600 1000 74 8 126 98 11 166
700 1500 137 17 135 180 24 177
1000 1500 182 32 122 239 45 160
1000 2000 257 45 132 338 63 174
1200 2000 297 63 126 390 88 166
1350 2500 427 102 130 561 142 170
1500 3000 579 152 132 731 214 174
1700 3000 639 191 128 840 267 168
2000 3500 875 308 128 1150 430 168
2500 4000 1381 663 137 1815 925 180
2500 5500 2019 943 148 2653 1317 195
3300 4500 1884 1175 130 2476 1640 171
3300 6500 3015 1814 146 3961 2532 191
3300 10600 5121 3090 171 6612 4294 220
4500 7000 4660 3816 186 5866 4945 233
4500 9000 5747 4752 146 7551 6633 192
4500 12000 7984 6473 154 10490 9037 202
