Yokohama Type Custom Size Pneumatic Rubber Fender Ship Dock Fender 2m*3.5m

Product Description

1. The advantages of pneumatic rubber fender

1.1 Choose reinforce synthetic-tire-cord layers

1.2 No mold vulcanization and attach surrounding molding process

1.3 High energy absorption and low reaction force

1.4 Good adaptability to tilt in contact

1.5 Floating on the surface of the water, ship swaying can apply

2.Structure characteristics of the pneumatic rubber fender

LuHang Pneumatic Rubber Fenders made of an outer rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized firmly.

A]. the outer rubbers are used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.

B]. the reinforcement synthetic-tyre-cord layer strong enough to maintain the internal air pressure of the fender.

C]. the inner rubber layer seals the pressurized air inside the fender.

D]. fenders of diameter 2500mm and larger equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally.

Fender assembly for the end of metal, by inside and outside the two flanges with bolts, nut clamping, center is a valve, its structure is similar to automobile tire valve.

3. The purpose of the pneumatic rubber fender

3.1ship to ship berthing

Accompanied by a large ship, the risk of two ship berthing at sea is also increased, especially when the weather changes, accompanied by wind and waves.Adopt pneumatic fender as side of the buffer, not only make heavy berthing becomes easy, and improve the efficiency of the transportation operations. Pneumatic fender is mainly used for: Ice in the Antarctic ocean fishing ships, large oil tanker berthing.

3.2 Used for terminal dock protection

Of the ship is very large, the cause of berthing impact energy have multiplied.Inflatable rubber fender because of its high energy absorption and low reaction force features are widely used.

4. Maintenance and safety knowledge

4.1Internal pressure adjustment

Fender pressure should be kept in the standard air pressure in the± 5% range, and once every three months to check air pressure, deflated or fill gas up to standard in a timely manner.

4.2 safety knowledge

a. Avoid touching the sharp things

b. when Long time not use, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.

c. Storage place away from heat, acid and alkali, oil and grease

5. Pneumatic rubber fender use matters needing attention

a. Pneumatic pressure control in±5% of the rated pressure

b. Test pressure normally, add pressure in a timely manner

c. Avoid contact with sharp objects

d. when Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.

e. Storage place away from heat, acid and alkali, oil and grease

f. when store, shall not be folded and piled up

6. Luhang Pneumatic Rubber Fender Performacne

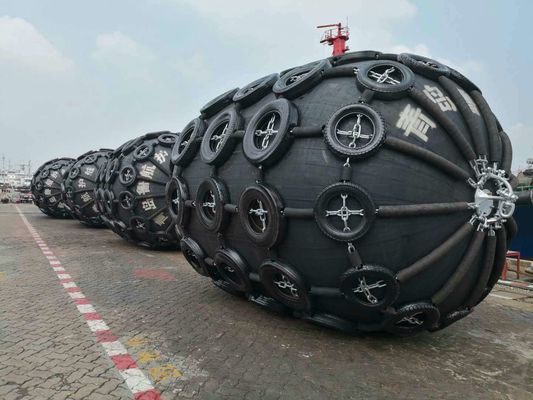

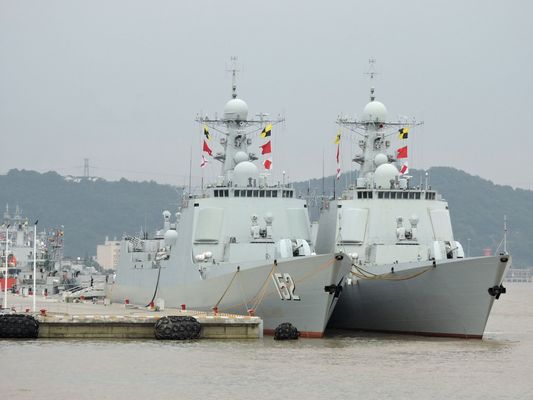

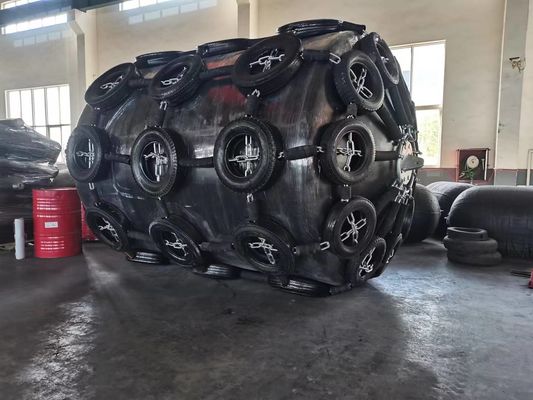

More Pictures of our Pneumatic Ship Fenders

Pneumatic Ship Fenders

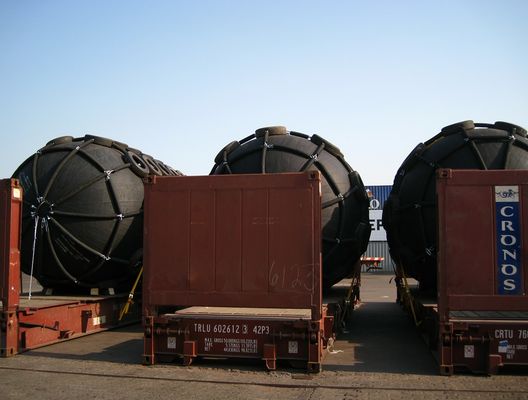

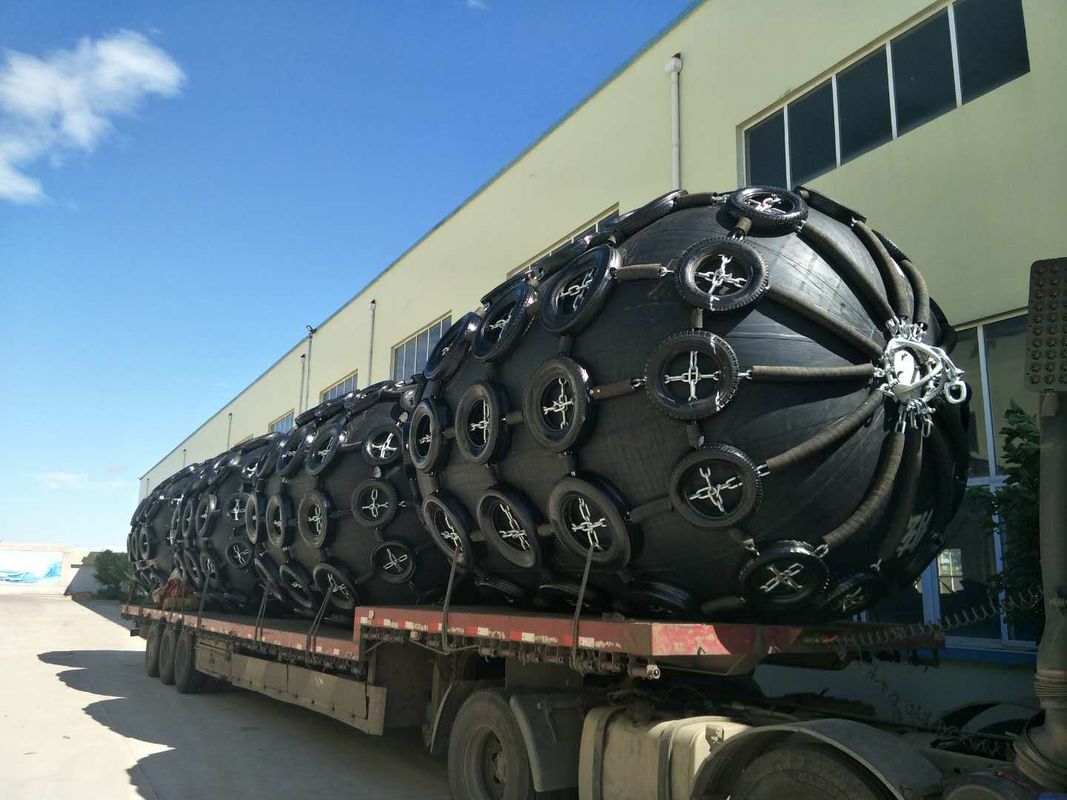

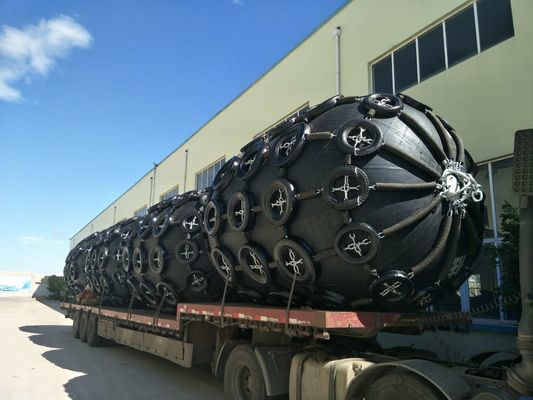

Packaging & Shipping

Our Products

Company Information

Qingdao Luhang Marine Airbag and Fender Co., Ltd. is the leading & professional manufacturer of marine equipments in China, which locates in Qingdao and has been specializing in producing ship air bags and all kinds of marine fenders since 1988.

With the rapid business progress of marine airbag and fender products in the world, we have built a Group Company in 2011 getting some investment and enhanced our registered capital to US$5,000,000 (USD 5 million). We believe we company will have a better growth rate by supplying the best quality of marine airbag and fender products with the reasonable price.

Welcome friends from all over the world to our company! Looking forward to being your friend and best supplier on marine airbag and fender products!
