Adjustable Pneumatic Marine Fender For Different Tide Levels

Adjustable Pneumatic Marine Fender For Different Tide Levels



General Introduction of Adjustable Pneumatic Marine Fender For Different Tide Levels



Adjustable Pneumatic Marine Fender For Different Tide Levels is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.

Adjustable Pneumatic Marine Fender For Different Tide Levels is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers , LPG vessels , ocean platforms , large docks , harbor and wharfs.



Products Structure



The fender body is made up of an inner rubber layer , reinforced cord layers , and an outer rubber layer that are all fused together through vulcanization.
The outer rubber layer is specifically formulated to endure tough conditions and protect both the cord layers and inner rubber from abrasion.
The synthetic cord layers are strategically placed to evenly distribute weight and stress , ensuring the fender retains its internal air pressure. The inner rubber compound is airtight , similar to a car tire's inner tube , to prevent air leakage.



Products Feature



1.Easy and fast to to be used ; Very low reaction and hull pressure

2.Performance adjustable by varying initial pressure

3.Suitable for areas with large or small tides

4.Maintains large clearances between hull and structure

5.Optional chain-tyre nets for heavy duty applications ;

6.Lightning Delivery Ship To Quay Yokohama Rubber Fender With Aircraft Tyre



The mainly size Adjustable Pneumatic Marine Fender For Different Tide Levels



Floating marine ship rubber fender is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the water and work as a shock absorber between two ships , or between ships and berthing structures when they come alongside each other on the water.

The fender body is constructed of an inner rubber layer , reinforced cord layers and an outer rubber layer. All of these layers are vulcanized together.

The outer skin rubber compound is designed and manufactured to be able to withstand both strenuous use including abrasion during adverse weather conditions whilst protecting the cord layers and inner rubber.

The synthetic tyre cord layers are arranged and designed to distribute load and stress evenly, which maintains the internal air pressure of the fender.

The inner rubber compound is designed to be completely airtight , utilising a compound equivalent tothat an inner tube of a car tyre.

Size(mm)		50KPa Feder			80KPa Feder
Diameter	Lenght	Energ yabsorption(KJ)	Reaction(KN)	Weight(KG)	Energ yabsorption(KJ)	Reaction(KN)	Weight(KG)
500	1000	6	64	25	8	80	30
700	1500	17	137	50	21	171	60
1000	2000	45	257	83	63	338	88
1350	2500	102	427	135	142	561	160
2000	3500	308	875	345	430	1150	422
3000	4500	945	1827	551	925	1815	659
4500	9000	4752	5747	2700	6633	7551	3700

Special or customized sizes are available.



The Advantage of Adjustable Pneumatic Marine Fender For Different Tide Levels



1.Strictly enforce ISO17357 standard to ensure good product quality

2.Good and high performance guarantee

3.High precision design engineering and advanced manufacturing processes

4.High efficient emergency response support

5.Professional technical advice and engineering support

6.Good after-sale service

7.Professional marine solutions



Common Applications of Adjustable Pneumatic Marine Fender For Different Tide Levels



Adjustable Pneumatic Marine Fender For Different Tide Levels are suitable for many applications including

1. Tankers , Gas Carries and Bulk Cargo Ships;

2. Fast ferries and aluminum hulled vessels;

3. Temporary of permanent installations;

4. Rapid response and emergency fendering;

5. As stand-off fenders to realign ships with shore facilities.



Adjustable Pneumatic Marine Fender For Different Tide Levels Design

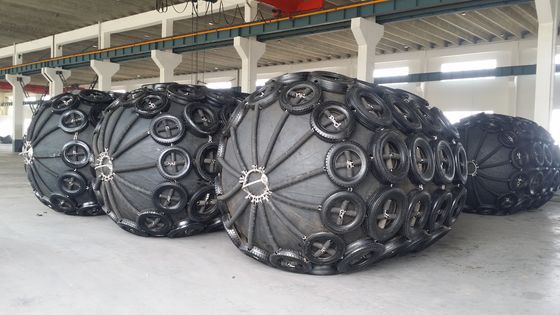

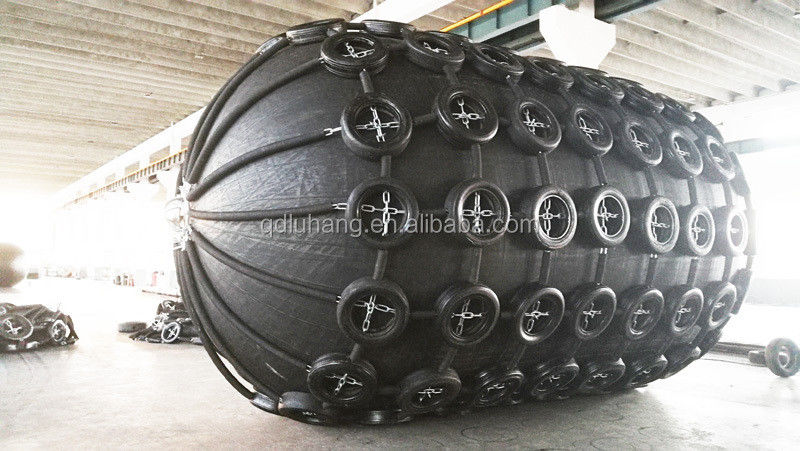

More Pictures of Adjustable Pneumatic Marine Fender For Different Tide Levels







Product Uses of Adjustable Pneumatic Marine Fender For Different Tide Levels



Product Uses of Adjustable Pneumatic Marine Fender For Different Tide Levels Adjustable Pneumatic Marine Fender For Different Tide Levels are essential components in the maritime industry , serving multiple important purposes.

1.Protection during Berthing and Mooring

A.Cushioning impact

When ships come alongside docks or other vessels for berthing or mooring, there is a significant risk of impact. Adjustable Pneumatic Marine Fender For Different Tide Levels act as a cushion, absorbing the energy of the impact and protecting both the ship and the docking structure from damage.

B.Reducing hull stress

By absorbing the impact , these fenders help to reduce stress on the ship's hull. This is crucial for maintaining the structural integrity of the ship and prolonging its lifespan.

C.Preventing damage to dock facilities

The fenders also protect dock facilities such as piers , wharves, and quay walls from damage caused by the impact of ships. This helps to ensure the safety and functionality of port infrastructure.

2. Minimizing Vibration and Noise

A. Dampening vibrations

During ship operations, vibrations can be transmitted through the hull and cause discomfort to crew members and damage to equipment. Adjustable Pneumatic Marine Fender For Different Tide Levels help to dampen these vibrations , providing a more stable and comfortable working environment.

B. Reducing noise pollution

The fenders also help to reduce noise pollution by absorbing the sound of impacts and vibrations. This is important for both the crew on board the ship and people living and working in nearby areas.

3. Facilitating Smooth Operations

A. Ensuring safe docking and undocking

Adjustable Pneumatic Marine Fender For Different Tide Levelss play a crucial role in ensuring safe docking and undocking operations. They provide a buffer between the ship and the dock , allowing for smooth transitions and reducing the risk of accidents.

B. Improving cargo handling

When ships are docked , the fenders help to keep the ship stable, making it easier to load and unload cargo. This improves efficiency and reduces the risk of damage to the cargo and the ship.

4. Versatility and Customization

A.Available in different sizes and shapes

Adjustable Pneumatic Marine Fender For Different Tide Levelss are available in a wide range of sizes and shapes to meet the specific needs of different ships and docking facilities. This allows for customization and ensures optimal protection.

B.Can be used in various environments

These fenders can be used in a variety of marine environments, including harbors , ports, and offshore installations. They are designed to withstand the harsh conditions of the sea and provide reliable protection.

5.Emergency Situations

A.Protecting during collisions

In the event of a collision between ships or between a ship and a dock, Adjustable Pneumatic Marine Fender For Different Tide Levels can help to minimize damage. They act as a shock absorber, reducing the force of the impact and protecting the vessels involved.

B.Aiding in salvage operations



Company Profile



We Are Always At Your Service When You Need

Established in 1988 as Air Force Jinan Luhang Marine Airbag Factory, Qingdao Luhang Marine Airbag and Fender Co. , Ltd specializes in manufacturing SPUA Coated and EVA Foam Filled Fenders, Pneumatic Rubber Fenders, Solid Rubber Fenders , Deep Sea Floating Material, Marine Airbags, and various Rubber Airbags. Our factory covers an area of 4000㎡ with a building area of 30000㎡ and holds registered assets of 16 million USD.
With over 30 years of experience , Luhang a recognized supplier for prestigious maritime enterprises such as Dalian Ship Industry Company , Jiangnan Shipbuilding, Shanghai Waigaoqiao , Shanghai Zhenhua Port Machine , Korea Hyundai Heavy Industry , Japan Mitsubishi Heavy Industry , and others.
Luhang has successfully implemented airbag barriers for the launch of Aircraft Carriers Liaoning and Shandong , as well as on the Antarctic research vessel Science and the largest drilling platform in Asia , known as "981". Additionally, Luhang has provided airbag barriers for Qingdao Submarine Base and contributed to the National Project "863" , focusing on designing and producing deep-sea aquaculture net cages.







Why Choose Luhang Adjustable Pneumatic Marine Fender For Different Tide Levels



1. More than 30 years of production experience,we can guarantee the quality as what we talked. If there is any quality issue within guarantee period , we will replace a new one freely.

2. Credible company to make the products with optimzied rubber material and enough layers

3. We are strictly compliance the ISO 14409 standard. All our product can pass the Third-Party like BV , SGS , V-Trust etc inspection if need.

4. Our company is very large instead of individual workshop , and you are welcome to visit the factory anytime



Our Partner



We have worked with many of the leading brands,and almost all of our co-operators have been satisfied with our products and services , and have continued their co-operation for many years. We are looking forward to your enquiry , let's cooperate and win together!











Certification



UKAS Certification,BV Certification , SGS Factory Certification,CCS Certification,New High-tech Enterprise Certification and so on.
1. The certification of ISO9001:2000
2. The certification of UKAS
3. The certification of NANB
4. The certification of ISO14001 2014
5. The BV factory certification
6. The SGS factory certification
7. The navy supplier certification
8. The military product quality management certification GJ90001b-2009(CUC)
9. The ISO Environmental Management certification,occupation health safety Management
10. Certification and Quality Management Certification
11. A high and New Technology Enterprise



Frequently Asked Questions



Question1: "What kind of certificate can you provide for Adjustable Pneumatic Marine Fender For Different Tide Levels

?"

Answer CCS, BV, SGS etc. certificate is available.

Question2 "What's the warranty period of your Adjustable Pneumatic Marine Fender For Different Tide Levels ?"

Answer Our warranty period is 2 years. we will responsible for the repair or replace the new Adjustable Pneumatic Marine Fender For Different Tide Levels for you if it proved to be our quality problem.

Question3 "I want to try your rubber dock fender bumper , but I never use it and don't know how to use ,can you help me?"

Answer Don't worry. We will send instruction book together with Adjustable Pneumatic Marine Fender For Different Tide Levels

Question4 "I have ships but don't know how to choose the size of Adjustable Pneumatic Marine Fender For Different Tide Levels , can you help me?"

Answer: Don't worry .We have more than 30 years' experience. Pls tell me information of your ship , we can suggest suitableAdjustable Pneumatic Marine Fender For Different Tide Levels size and quantity for you

Question5 "What's the delivery time and payment terms ?"

Answer Delivery time is based on product model and order quantity. normally it is around 7-15 working days. The payment could paid by T/T , L/C,Alibaba, etc.
