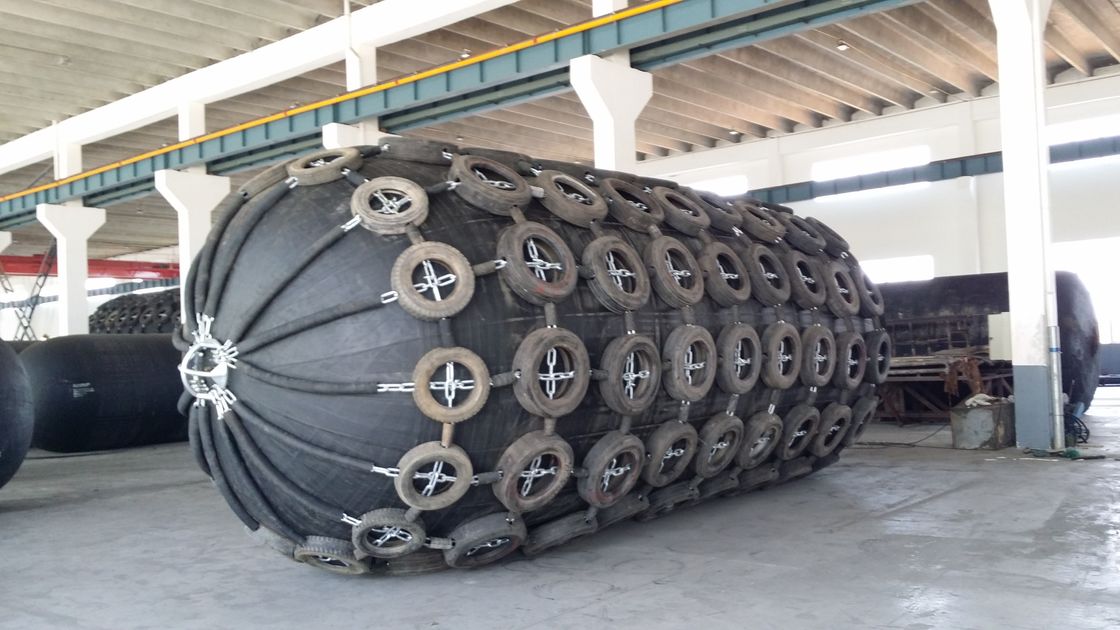

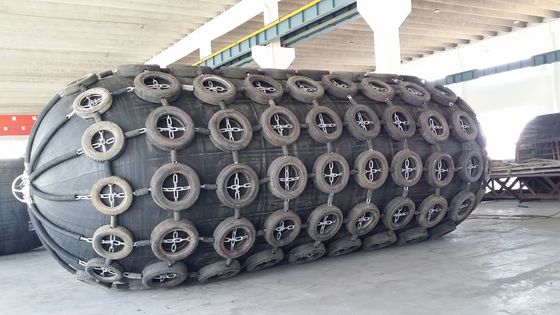

Marine Grade Yokohama Pneumatic Fenders For Optimal Protection

Product Details:

Place of Origin:	china
Brand Name:	Qingdao luhang
Certification:	CCS,BV,LR,DNV,SGS,ABS
Model Number:	LH-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 units
Price:	to be neogiated--best price
Delivery Time:	8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 pieces per month

Contact Now

Detailed Product Description

Highlight:

Optimal Protection Yokohama Pneumatic Fenders

Marine Grade Yokohama Pneumatic Fenders

Marine Grade yokohama rubber fender

Description

Marine Foam Fender introduction

Create a comprehensive solution for efficient human theft manag

Overview

The mobile mode of the LCL room is more convenient,the crane can be quickly transported to the destination,the site lifting,the day to stay,the disassembly is simpler,the direct lifting...

Other Names

Known as foam boat fenders, donut foam fenders, fender foam, monopile donut fender, or boat side foam fender.

Application

Suitable for all berths, jetties, various vessels, naval applications, and ship-to-ship transfer.

Container single-family home

The mobile mode of the LCL room is more convenient,the crane can be quickly transported to the destination,the site lifting,the day to stay,the disassembly is simpler,the direct lifting...

Marine Foam Fender specification

product standard(Note: Customized size available.)

D x L	LOW REACTION		STANDARD CAPACITY		HIG H CAPACITY		EXTRA HIGH CAPACITY
(mm)	E A	R F	E A	R F	E A	R F	E A	R F
(mm)	kNm	kN	kNm	kN	kNm	kN	kNm	kN
300 x 500
500 x 1,000	7	42	10	67	14	79	19	112
600 x 1,200	9	53	15	89	19	116	28	169
1,000 x 1,500	28	102	47	173	61	227	89	329
1,000 x 2,000	41	151	68	254	88	329	129	480
1,200 x 2,000	54	169	91	280	118	365	172	534
1,200 x 2,500	72	222	121	369	157	480	228	703
1,200 x 3,000	96	294	160	489	207	632	302	925
1,350 x 2,500	91	249	152	418	197	543	287	792
1,500 x 3,000	146	356	244	596	317	774	464	1,130
1,700 x 3,000	169	369	282	618	366	801	536	1,174
2,000 x 3,500	273	507	454	845	591	1,099	864	1,606
2,000 x 4,000	324	601	540	1,005	701	1,303	1,025	1,904
2,200 x 4,000	386	653	643	1,088	836	1,415	1,222	2,068
2,200 x 4,500	447	757	746	1,263	969	1,640	1,416	2,397
2,500 x 5,500	623	916	1,022	1,516	1,398	1,943	1,899	2,795
3,000 x 5,000	879	1,072	1,464	1,788	1,904	2,326	2,782	3,398
3,000 x 5,500	1,022	1,250	1,704	2,082	2,217	2,705	3,239	3,954
3,000 x 6,000	1,167	1,423	1,946	2,375	2,530	3,087	3,697	4,515
3,000 x 6,500	1,312	1,601	2,187	2,669	2,842	3,470	4,154	5,071
3,300 x 4,500	899	1,014	1,498	1,690	1,948	2,193	2,847	3,207
3,300 x 6,500	1,452	1,637	2,421	2,731	3,148	3,550	4,600	5,187
4,000 x 8,000	2,636	2,629	3,793	3,711	5,227	5,189	6,973	6,921
4,500 x 9,000	3,436	3,408	4,779	4,726	6,586	6,533	8,785	8,729
6,000 x 8,000	5,274	5,893	7,320	8,139	9,520	11,318	12,910	14,520

Competitive advantage

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

Advanced R & D Advantage

The company specializes in the field of foam-filled marine fenders. Its R & D center constructs products around a closed-cell EVA foam core and a reinforced SPUA (spray polyurea) elastomer outer skin. This unique construction technology not only enables the fenders to stay afloat when impacted but also effectively prevents water infiltration, ensuring product durability and placing the company at the forefront of the industry.

Rich Customization Experience Advantage

Fully aware that different customers have diverse requirements, the company offers a variety of customizable options. In terms of product names, it covers different styles corresponding to various aliases such as foam boat fenders and donut foam fenders. Regarding sizes, it can provide services ranging from standard specifications to fully customized ones based on customers' actual usage scenarios, meeting diversified needs of various berths, wharves, and ships, ensuring precise adaptation.

High-Quality Material Selection Advantage

The company is extremely strict in raw material control. It selects combined materials such as high-quality polyester polyurea type polyurethane matrix (PU), fibers, synthetic fabrics, and even metals to create a protective coating that can resist hydrolysis and harsh marine environments. Meanwhile, in the selection of closed-cell polyethylene (PE) foam, it offers a variety of density options ranging from 18 kg/m³ to 200 kg/m³ to maximize energy dissipation and reaction force control, guaranteeing excellent product performance.

Outstanding Production Process Advantage

The company possesses exquisite production techniques. For example, a thick PU coating is sprayed onto the PE foam core, precisely controlling the coating thickness between 5 mm and 50 mm, and it can be thickened as required for special purposes, greatly enhancing the wear resistance of the product on working surfaces such as wharves and piers. Moreover, with high production flexibility, it can customize the diameter and length of "mobile" fenders to the centimeter level according to customer requirements, ensuring a perfect balance between product quality and applicability.

Professional After-Sales Support Advantage

The company attaches great importance to the after-sales . Considering the long-term use of the product, even after the closed-cell foam core fenders have been used for many years, they can still be sent back to the factory for re-coating, rejuvenating the product and extending its service life. Meanwhile, a professional after-sales team is always on standby to quickly respond to and answer customers' questions during installation and use, relieving customers of their worries.
