Name: Yokohama Type Pneumatic Rubber Fender
Brand: Qingdao Luhang Marine Airbag and Fender Co., Ltd
SKU: LH2540
Price: 3,220.00 USD
Availability: InStock

Home Products Pneumatic Marine Fender

Yokohama Type Pneumatic Rubber Fender

Product Details:

Place of Origin:	Qingdao, China
Brand Name:	Lu Hang
Certification:	CCS/BV/ABS/SGS
Model Number:	LH2540

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	To be negotiated
Packaging Details:	Inflated or Deflated on Pallet
Delivery Time:	10-15 work days
Payment Terms:	T/T, L/C
Supply Ability:	30 Units Per Month

Contact Now

Detailed Product Description

Name:	Pneumatic Rubber Fender/Marine Fender/Yokohama Fender	Application:	Port, LNG Vessel, Bulk Carrier
Type:	50kPa Or 80kPa	Structure:	With Chain Tyre Net
Feature:	No Air Leakage, Low Reaction, Low Cost	Standard:	ISO17357-2014/CCS / BV / LR / ISO17357/DNV/SGS

Yokohama Type Pneumatic Rubber Fender

Introduction

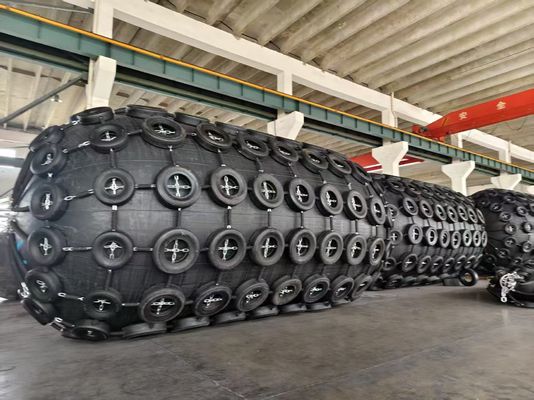

Yokohama Type Pneumatic Rubber Fender 0

The Yokohama Pneumatic Rubber Fender revolutionizes ship berthing with its innovative design, utilizing air as the primary buffering medium. By efficiently absorbing impact energy through compressed air, it ensures vessels dock smoothly, safeguarding ships from collision - related damage. This cutting - edge fender is engineered with multiple advanced features, making it a top - choice for maritime applications.

Unparalleled Performance and Durability

One of its most significant advantages lies in its remarkable deflatability. This feature enables effortless, cost - effective relocation and reinstallation across various sites. The fender also boasts high - pressure resistance, superior energy - absorption capabilities, and minimal reactive force. Its robust construction provides excellent resistance to aging and saltwater corrosion, ensuring long - term reliability even in harsh marine environments. Additionally, it supports berthing operations at angles of up to 15 degrees, accommodating diverse vessel types and docking scenarios.

Comprehensive Specifications and Configurations

Available in an extensive range of sizes, from D0.5mL1m to D4.5mL12m, the Yokohama Pneumatic Rubber Fender can meet the specific requirements of different maritime projects. It offers flexible protection options, allowing users to choose between using tire net chains for enhanced safeguarding or operating without them based on their needs.

Size/ *DL**	(50kPa)at 60%compression		(80kPa)at 60%compression
	GEA/ (KNm)	RF/ (KN)	GEA/ (KNm)	RF/ (KN)
0.5mx1.0m	6	64	8	80
0.6mx1.2m	10	86	13	108
0.7mx1.5m	17	137	21	171
1.0mx1.5m	32	181	40	266
1.35mx2.5m	100	426	125	533
1.5mx3.0m	153	579	191	724
1.7mx3.0m	190	637	238	796
2.0mx3.5m	308	875	385	1,094
2.5mx4.0m	663	1,380	829	1,725
2.5mx5.5m	932	2,010	1,658	2,513
3.0mx5.0m	1,050	2,030	1,313	2,538
3.3mx6.5m	1,814	3,015	2,534	3,961
3.5mx6.0m	2,018	3,286	2,523	4,018
4.5mx9.0m	4,752	5,747	6,633	7,551

Extensive Applications

This versatile fender finds widespread use across a multitude of maritime vessels and structures, including oil tankers, container ships, yachts, ocean platforms, large wharves, and naval ports. Its adaptability to ship berthing from all directions has made it a staple in various port operations.

Features Of Yokohama Pneumatic Fender

● High strength and friction resistance.
● High energy absorption with a low reaction force
● Adjusted performance by varying internal pressure
● Low and easy maintenance
● Low transportation costs – pneumatic fenders can be deflated and folded for transport
● Easily deflatable to be used in a different location and to be stored on deck

Trusted Supplier

Yokohama Type Pneumatic Rubber Fender 2

LUAHNG marine, a leading professional manufacturer of marine equipment in China, proudly offers the Yokohama Pneumatic Rubber Fender. Committed to providing products at the most competitive prices, LUAHNG ensures that customers receive exceptional value without compromising on quality. For more information or to place an order, please reach out to LUAHNG.

Tag:

Contact Person: Mr. Novid Liu

Tel: 86-19063952008
