2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength

2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength

  • 2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength
  • 2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength
  • 2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength
2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength
Product Details:
Place of Origin: China
Brand Name: Luhang
Certification: CCS/BV/SGS
Model Number: LH1515
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: to be negotiable
Packaging Details: Folded on Pallet
Delivery Time: 10-15 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Units per Month
Contact Now
Detailed Product Description
Product Name: Launching Ship And Boats Marine Rubber Airbags Material: Natural Rubber And Tyre Cord
Size: 2.2m X 15m Usage: Launching Ships And Boats
Feature: No Air Leakage, Wearable, Easy Operation, Economy Lifespan: 6 Years
Highlight:

inflatable air bags for shipping

,

docking rubber airbags

2.2m x 15m Shipyards Launching Ship and Boats Marine Rubber Airbags



Launching ship and boat marine airbags are widely used for ship launching and docking in shipyards, specially medium and small shipyards alongside rivers and seasides in Asian and American countries. Marine airbags are often called ship launching airbags that indicates the most popular application of these heavy duty airbags is for ship launching. It is estimated that more than 80 percent new built ships who’s DWT below 60,000 are launched by marine airbags.

Launching with marine airbags is very flexible. Any flat ground with a slightly declining angle can be taken as a slip way. Airbags can sucessfully launch a ship even on a bank 1 or 2 meters over water level.





Key Features of Launching Ship Marine Airbags:



1. Flexible in various launching projects: Airbags can be made to be specified sizes and layers as per the requirement of different launching projects.

2. Easy Operation: The operation of launching vessels with rubber airbags is releatively easy, just laying out and inflating the airbags to lift the vessels and roll them to the water.

It has not strict requirement on slipway conditions. Ship launching can be executed even in tough conditions.

3. Durable and recycled: Marine Airbags can be used many times repeated.

4. High economy: As marine airbags can be used repeatedly and its cost is not high, launching or docking ships with marine airbags can save much cost for shipyards or ship owners.







The Size and Specifications of Ship Launching Airbags



Ship launching airbags can be made into various sizes and layers accoding to the ship size and weight and the launching or docking conditions.



Size Diameter 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m
Effective Length 10m, 12m, 15m, 18m, 20m, 22m, 24m, etc
Layers   4 layers, 5 layers, 6 layers, 8 layers, 10 layers, 12 layers





Specifications of Several Sizes of Ship Launching Airbags



Model Dia Effective Length Overall Length Cord Layer Rubber Plate Thick-ness Working Pressure Bursting Pressure Lifting Height Bearing Capacity
  M M M Layer Layer mm MPa MPa M Ton/meter Ton/airbag
LH-6 1.2 12 14 6 1 7.2 0.17 0.75 0.90 7.85 94.20
1.00 5.23 62.76
1.10 2.62 31.44
LH-7 1.5 15 17 7 1 8.2 0.16 0.70 1.00 12.21 183.15
1.10 9.77 146.55
1.20 7.33 109.95
1.30 4.89 73.35
LH-8 1.8 18 20.5 8 1 9.2 0.15 0.67 1.20 13.96 251.28
1.30 11.63 15.12
1.40 9.31 167.58
1.50 6.98 125.64
1.60 4.65 83.70
LH-10 2.0 20 23 10 1 11.2 0.17 0.75 1.30 18.32 366.40
1.40 15.70 21.98
1.50 13.09 261.80
1.60 10.47 209.40
1.70 7.85 157.00



How to Launch Vessels with Marine Airbags



Below is the general process of launching ship with marine rubber airbags.

1. Get enough suitable airbags ready

2. Level and Clean the launching slipway to make sure no nails or sharp stones

3. Tie the ship to the winch with steel wire

4. Lay airbags under ship bottom at suitable locations

5. Inflate the airbags to lift the ship away from the blocks and remove the blocks

6. Lower the lifting height properly by releaseing some air

7. Slowly release the wire and roll the ship slowly backward to the water



The layout of Marine Airbags for Ship Launching


According to the breadth of ships, there are usually 3 patterns of airbag layout:

2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength 0



Pictures of Our Ship Luanching Airbags on Site



2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength 1

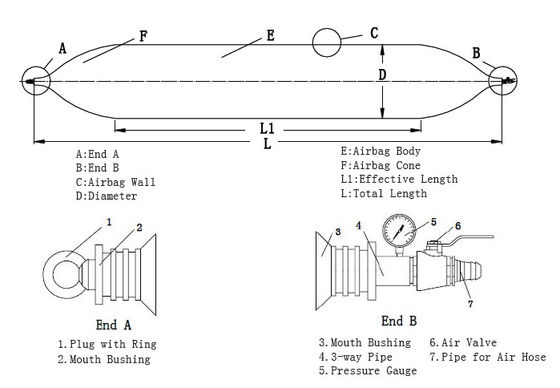

Material and Construction of Luhang Ship Launching Airbags



2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength 2



Why Choose us and Our Ship Launching Airbags?



1. We are the leading and professional manufacturer of marine airbags with more than 20 years of developing and production experience

2. Credible company to make marine airbags with optimzied rubber material, enough sizes and enough layers

3. ISO certificated with a number of patents on products

4. Airbags have been inspected and approved by Third-Party like BV, SGS, V-Trust etc with excellent performance of high pressure and airtightness

2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength 3

2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength 4

2.2m*15m Shipyards Ship Launching Airbags Natural Rubber High Tensile Strength 5



This inspection report shows all airbags almost had no air leakage after 8 hours from initial pressure 0.15mPa-0.16mPa to 0.14-0.15mPa.



5. Satisfying and timely after-sale service: In case of any quality claims during the warranty period, we will carry out the Three Guarantees for repair, replacement and compensation of faulty airbags.
