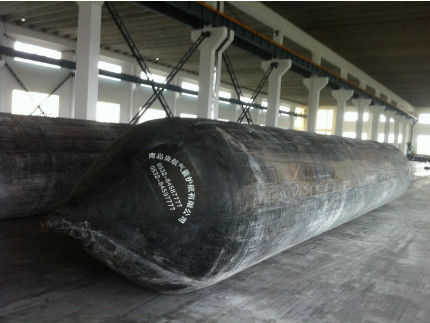

The Dockside Marine Airbag for Loading was conceived with the aim of revolutionizing the traditional loading processes in the maritime domain. In the past, loading operations in the shipbuilding, ship repair, and cargo handling sectors faced numerous challenges. Manual labor was often strenuous and time - consuming, while the use of heavy - duty machinery was not only expensive but also carried high risks of damage to both the cargo and the loading infrastructure. The concept behind this innovative product is centered around providing a flexible, safe, and cost - effective alternative. By harnessing the power of air - filled structures, the airbags are designed to distribute the weight of heavy loads evenly. This not only reduces the stress on the cargo during movement but also minimizes the potential for accidental drops or collisions. The adaptability of the Dockside Marine Airbag for Loading is a core part of its concept. It can be adjusted to fit different sizes and shapes of cargo, whether it's a small, irregularly - shaped component or a large, bulky vessel. This versatility allows for seamless integration into various loading scenarios, eliminating the need for multiple specialized handling equipment.
Specific Instructions For The Application Of Airbags
I.Marine Rubber Airbags for ship launching
Now more and more shipyard choose Luhang rubber airbags for ship launching, we continue to innovate and improve the application methods. Take an ordinary medium-sized ship as an example:
1. Preparation:
a. Calculate carefully, prepare enough airbags(check rubber airbags by 1.25 working pressure without load,confirm no air leakage), traction winches, air compressors.
b. Build &Clean up the road:The ramp need be flat,need a enough depth and length in water, confirm there is no Sharp object to prevent airbags be piercedc.
c. Grind the burrs at the bottom of ship to be smoothd.
d. Close the sea valve, fix rudder, propeller
2. Working process:
a. link ship and traction winches by wire rope.

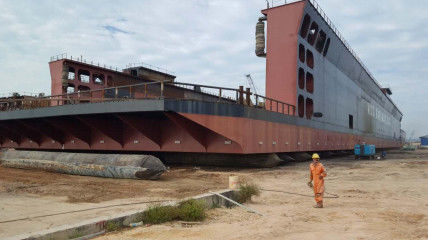

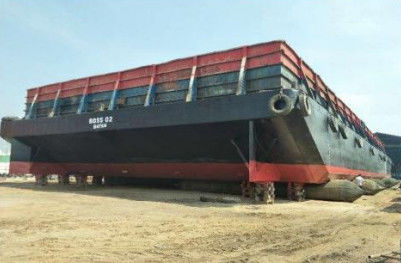

b. Put and inflate rubber airbags under the ship,use inflatable rubber airbags to support the ship weight, then remove the blocks.
Depending on the size and shape of a ship, the ship may be launched by the end launching method.There are three ways to arrange airbags when using the end launching method:
Single row arrangement
Cross over arrangement
Two row arrangement
c. Adjust the internal pressure of rubber airbags,reduce the ship height to a suitable working height to keep the ship Steady progressd.
d.Put 2 or 3 rubber airbags on the black area nearby the ship.
e. Active traction winches,release wire rope slowly,keep ship move slowly.
f. When the airbags separate from the bottom of bow,move them to the front of the ship moving direction.
g. Repeat f work until the ship nearby seawater.
h. Notify people in danger areas to evacuate,the workers on ship prepare to release the hauling of ship by winch when the ship enter deep seawater.
i. Collect and clean rubber airbags,storage after dry.
II. Marine Rubber Airbags for ship docking
1.Preparation:
a. Calculate carefully, prepare enough airbags(check rubber airbags by 1.25 workingpressure without load,confirm no air leakage), traction winches, air compressors.
b. Build &Clean up the road:The ramp need be flat,need a enough depth and lengthin water, confirm there is no Sharp object to prevent airbags be pierced
2.Working process:
a. link ship and traction winches by wire rope.
b. Put and inflate rubber airbags under the ship to lift the ship,put rubber ai rbags as calculated width on the road. I ship reach the repair place.
c. Active traction winches,recycle wire rope slowly, keep ship move slowly unti support the ship.
d. Work with the jack to lift ship to a height, then arrange blocks instead of airbags to support the ship.
e. Collect and clean rubber airbags, storage after dry.
III. Rubber Airbags for Heavy Object transportation
instrutions of application (the same with I Marine Rubber Airbags for ship launching)
Technical Services Of Luhang Team
Luhang team have Rich experience of ship launching by rubber airbags successfully,and keep do Technology research.Especially for the big ship launching,must choose good team to supply the most safety plan according to the shipyard environment.
Technical services and support:
A. Preliminary discus sion to understand project needs (vessel specs & diagrams, as wellas environmental factors like slipway conditions, tide etc)
B. Site visit to inspect limitations of slipway and environment
C. Supply whole set of required equipments.
D. Discussion & training to help clients' operations team:
Understand operations procedure and execute according to plan
Commissioning & operate supplied product equipments
Understand & manage potential risks
Implement safety factors & precautions
Maintenance & storage best practices to prolong products' lifespan
Feedback post-mortem discussion to fine-tune operations for greater efficiency forthe next project
E. On-site consultation services during project operations.
F. Contracted ship launching project by rubber airbags.
