|Place of Origin:||China|
|Minimum Order Quantity:||2 units|
|Price:||to be negotiable|

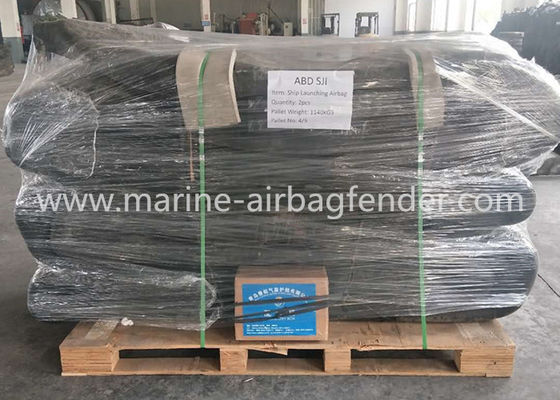

|Packaging Details:||Folded on Pallet|
|Delivery Time:||10-15 Work Days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 Units per Month|
|Name:||Lifting And Launching Boats And Ships Air Bag||Material:||Natural Rubber And Tyre Cord|
|Size:||2m X 18m Or As Per Customers' Requirement||Application:||Launching And Liftng Vessels|
|Feature:||No Air Leakage, Wearable, Easy Operation, Economy||Standard:||ISO17957-1|
marine salvage lift bags,
boat landing airbag
Indonesia Shipyards Lifting and Launching Boats and Ships Air Bag

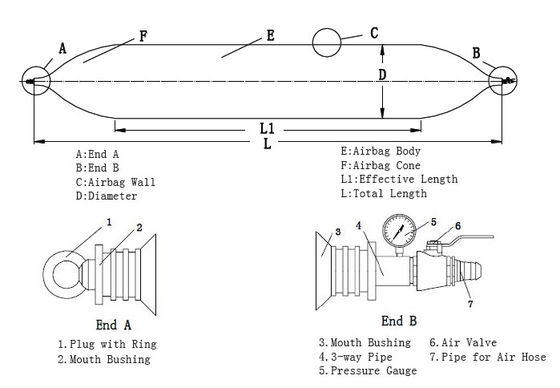

Marine rubber airbag typically has a body of cylindrical shape and two conical heads, one at each end. At each head end, there is a metal bushing as a mouth for air inflation and the plug with a ring. Marine air bags are widely used for lifting and launching ships and boats in shipyards, specially for medium and small shipyards alongside rivers and seasides in Asian and American countries. Marine air bags are often called ship launching air bags that indicate the most popular application of these heavy duty air bags is for ship launching. It is estimated that more than 80 percent new built ships who’s DWT below 60,000 are launched by marine air bags.
Key Features of Lifting and Launching Ships Marine Air Bags:
(A). Flexible in various launching projects: Launching ship air bags can be made to be specified sizes and layers as per the requirement of different launching projects.
(B). Easy Operation: The operation of launching vessels with rubber air bags is releatively easy, just laying out and inflating the air bags to lift the vessels and roll them to the water.
It has not strict requirement on slipway conditions. Ship launching can be executed even in tough conditions.
(C). Durable and recycled: Marine Airbags can be used many times repeated.
(D). Less cost: As marine air bags can be used repeatedly and its cost is not high, launching or docking ships with marine airbags can save much cost for shipyards or ship owners.
The Size and Specifications of Rubber Marine Air Bags
According to different launching requirement, marine rubber air bags can be made into various sizes and layers accoding to the ship size and weight and the launching or docking conditions.
|Size||Diameter||1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m|
|Effective Length||10m, 12m, 15m, 18m, 20m, 22m, 24m, etc|
|Layers||4 layers, 5 layers, 6 layers, 8 layers, 10 layers, 12 layers|
Specifications of Several Sizes of Launching Vessel Marine Air Bags
|Model||Dia||Effective Length||Overall Length||Cord Layer||Rubber Plate||Thick-ness||Working Pressure||Bursting Pressure||Lifting Height||Bearing Capacity|
How to Launch Vessels with Marine Air Bags
Below is the general process of launching ship with marine rubber airbags.
I. Get enough suitable air bags ready
II. Level and Clean the launching slipway to make sure no nails or sharp stones
III. Tie the ship to the winch with steel wire
IV. Lay airbags under ship bottom at suitable locations
V. Inflate the airbags to lift the ship away from the blocks and remove the blocks
VI. Lower the lifting height properly by releaseing some air
VII. Slowly release the wire and roll the ship slowly backward to the water
Pictures of Our Ship Luanching Airbags on Site
Material and Construction of Luhang Marine Launching Air Bags
The marine air bag wall is constructed with layers of rubbers plates. The inner layers are reinforced with nylon cord net. These layers support the airbag with bearing strength when the airbag is inflated. More layers the airbag wall has, greater strength the airbag has. And the nylon cord net plays a critical role in strength. Besides the cord reinforced layers, there is one extra layer without cord net outside the wall. This rubber layer has a function of anti-wear and anti-aging. To maximize the function of the inner layers and the exterior layer, the rubber material is specially optimized with suitable mixing formulas.
Why Choose us and Our Ship Launching Marine Air Bags?
1. We are the leading and professional manufacturer of marine airbags with more than 20 years of developing and production experience
With mature technology, experienced workers and strict quality control carried out on each step, we confidently guarrantee the high quality of the airbags of every production lot, specially in air tightness.
Below is the marine airbag’s production flow showing the production process from material processing to the finishing step.
2. Credible company to make marine air bags with optimzied rubber material, enough sizes and enough layers
3. ISO certificated with a number of patents on products
4. Airbags have been inspected and approved by Third-Party like BV, SGS, V-Trust etc with excellent performance of high pressure and airtightness
This inspection report shows all airbags almost had NO AIR LEAKAGE after 8 hours from initial pressure 0.15mPa-0.16mPa to 0.14-0.15mPa.
5. Satisfying and timely after-sale service: In case of any quality claims during the warranty period, we will carry out the Three Guarantees for repair, replacement and compensation of faulty airbags.
Our Markets and Customers of Marine Air Bags
Thanks to the flexibility of marine air bags for ship lifting and launching, our marine air bags are mainly used in shipyards in Indonesia, Malaysia, Philipines, Vietnam where there are many medium shipyards with no shipbuilding wharfs. In recently years, more and more American barge owners use them to launch and docking large barges in their shipyards alongside inland rivers. Some shipyards in Paraguay, Argentina and Brazil are starting to apply marine air bags for their launching work.
Please do not hesitate to drop me a message here below or an email. Any inquiry from you will be replied immediately.
Contact Person: Novid Liu
