| Place of Origin: | China |
| Brand Name: | Luhang |
| Certification: | ISO14409 |
| Model Number: | LHAL6 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD$800.00~USD4500.00 / pc Negotiable |
| Packaging Details: | Film packing on pallet |
| Delivery Time: | 10 ~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs / month |
| Name: | Ship Launching Airbag | Certificate: | ISO14409 |
|---|---|---|---|
| Usuage: | Marine Lifting And Floating | Diameter: | 1.2m / 1.5m / 1.8m / 2.0m / 2.5m Etc |
| Material: | 60% Nature Rubber | Color: | Black |
| Length: | Customize | ||
| Highlight: | boat lift float bags,marine salvage lift bags |
||

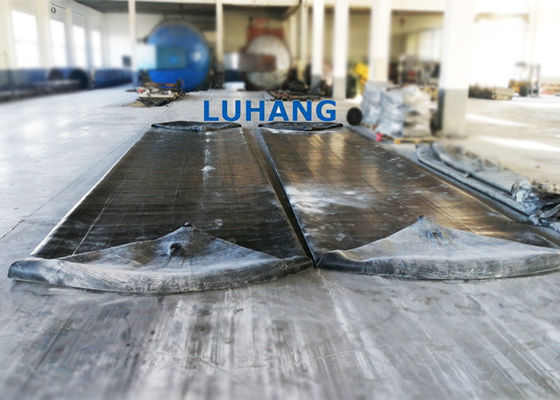

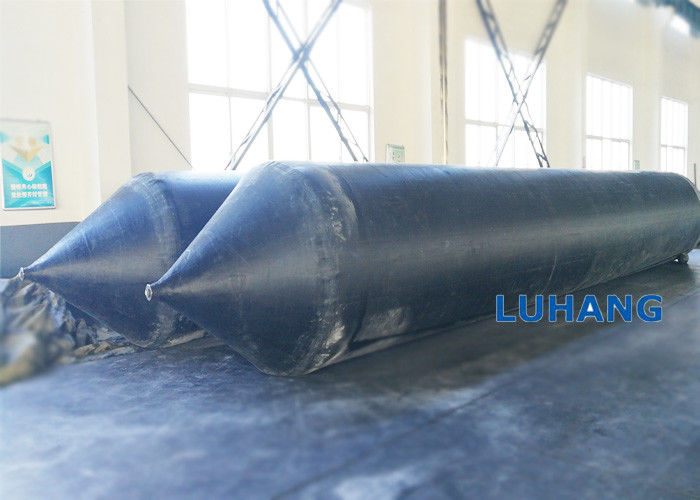

Boat Lift Inflatable Rubber Air Bags 1.5m x 10m Ship Floating Airbag
Boat lift air bag launching technology is on the basis of traditional launching technology developed, uses flexible air bags to replace chute and skateboard,To overcome the many shortcomings of traditional launching.
Airbags now are used for ship launching, landing and floating. They are widely used in cargo boat/ ship/ vessel launching and landing, lifting and moving sunken ships, and salvaging stranded boats.Air bags have the benefit of not only saving labor and time, but investment costs. Additionally they are flexible, portable, and dependable.
Ship Lifting
Tie the winch with wire rope to the ship hull
Choose the bow at the bottom of the better position to fill in one or more rubber boat air bags, when lifting to a certain height, will be the first to reach the ship under the winch tows.
Barge bottom flat type, such as boat airbags and bottom contact area large, if the ship hull weight was small, as long as there is difficulties, from the first feeding can be from one side to the other string into a airbag.
Structure of rubber airbag:
Inner rubber layer for air tight.
Middle tyre cord rubber layers, to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.
Out side rubber layer skin, to protect under layers from abrasion and other external forces.
Specification
| Diameter | Safe working pressure | Work high | The bearing capacity | |
| KN/M | T/M | |||
| D=1.5M | 0.11MPa | 0.9m | 103.79 | 10.58 |
| 0.8m | 121.06 | 12.34 | ||
| 0.7m | 138.32 | 14.1 | ||
| 0.6m | 155.59 | 15.86 | ||
| 0.5m | 172.85 | 17.62 | ||
| D=1.8M | 0.09MPa | 1.1m | 99.08 | 10.1 |
| 1.0m | 113.21 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.46 | 14.42 | ||
| 0.7m | 155.59 | 15.86 | ||
| 0.6m | 169.71 | 17.3 | ||
| D=2.0M | 0.08MPa | 1.2m | 100.65 | 10.26 |
| 1.1m | 113.21 | 11.54 | ||
| 1.0m | 125.76 | 12.82 | ||
| 0.9m | 138.32 | 14.1 | ||
| 0.8m | 150.88 | 15.38 | ||
| 0.7m | 163.43 | 16.66 | ||
| 0.6m | 175.99 | 17.94 | ||
For reference, please see below:
1.Quanlity good,if there's quanlity problem,we send new ones
2.Factory is the biggest
3.about 30 years experience
4.We buy natural rubber and other raw material directly,and we have a series of machines,and every step quanlity is confirmed.
Company:
We are a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbags. With advanced manufacturing equipment, strict QC,we are supplying high quality products and after-sale service and widely appraised by domestic and overseas customers.
Luhang wellcome customers all around the wrold to come and vist us, and hope that there's chances to cooperate with you.
