Pneumatic Rubber Boat Lift Air Bags 1.2m*10m Durable For Ship Lifting

Pneumatic Rubber Boat Lift Air Bags 1.2m*10m Durable For Ship Lifting

  • Pneumatic Rubber Boat Lift Air Bags 1.2m*10m Durable For Ship Lifting
  • Pneumatic Rubber Boat Lift Air Bags 1.2m*10m Durable For Ship Lifting
Pneumatic Rubber Boat Lift Air Bags 1.2m*10m Durable For Ship Lifting
Product Details:
Place of Origin: China
Brand Name: Luhang
Certification: ISO14409
Model Number: LHAL2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD$800.00~USD4700.00 / pc Negotiable
Packaging Details: Film packing on pallet
Delivery Time: 10 ~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs / month
Contact Now
Detailed Product Description
Name: Rubber Airbag Inflatable Certificate: ISO14409
Usuage: Ship Lifting And Floating Diameter: 1.2m / 1.5m / 1.8m / 2.0m / 2.5m Etc
Color: Black Color Material: 60% Nature Rubber
High Light:

boat lift float bags

,

marine salvage lift bags

Marine Boat Lifting Pneumatic Rubber Air Balloon 1.5m x 10m Ship Lift Airbag



Marine airbags now are used for ship launching, loading, and floating. They are widely used in cargo boat/ship/vessel launching and landing, lifting and moving sunken ships, and salvaging stranded boats. Air bags have the benefit of not only saving labor and time, but investment costs. Additionally they are flexible, portable, and dependable.

Luhang marine boat launching air bag are tested before shipment following on the below items which are the keypoints of one marine boat air bag.The appearance of per air bag is smooth, glossy and without blemish such as crack, blister, delamination, pits or impurities.

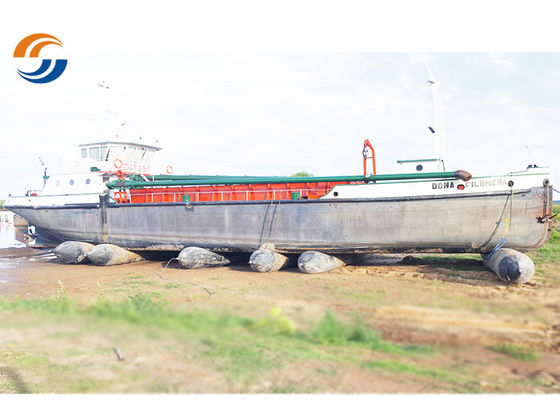

Ship Lifting



Tie the winch with wire rope to the ship hull



Choose the bow at the bottom of the better position to fill in one or more rubber boat air bags, when lifting to a certain height, will be the first to reach the ship under the winch tows. Barge bottom flat type, such as boat airbags and bottom contact area large, if the ship hull weight was small, as long as there is difficulties, from the first feeding can be from one side to the other string into a airbag.



When the hull weight is bigger, according to certain spacing increase 1 to 2 or more rubber air bags, until lift up first. First a "v" shaped powerboat, often because of the air bags and the bottom contact area is too small lifting force is not enough, would require air bag back, sometimes want to back a quarter of the captain to lift up the bow. Start the winch, the ship started to move, one by one according to the requirements of air bag placed spacing feeding rubber air bags, always pull the boat to the berth. Lifting vessels in conjunction with the lifting rubebr air bag together, playing hard block,  withdraw the air bags.



Specification



Diameter Safe working pressure Work high The bearing capacity
KN/M T/M
D=1.5M 0.11MPa 0.9m 103.79 10.58
0.8m 121.06 12.34
0.7m 138.32 14.1
0.6m 155.59 15.86
0.5m 172.85 17.62
D=1.8M 0.09MPa 1.1m 99.08 10.1
1.0m 113.21 11.54
0.9m 127.33 12.98
0.8m 141.46 14.42
0.7m 155.59 15.86
0.6m 169.71 17.3
D=2.0M 0.08MPa 1.2m 100.65 10.26
1.1m 113.21 11.54
1.0m 125.76 12.82
0.9m 138.32 14.1
0.8m 150.88 15.38
0.7m 163.43 16.66
0.6m 175.99 17.94



We are a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbags. With advanced manufacturing equipment, strict QC,we are supplying high quality products and after-sale service and widely appraised by domestic and overseas customers.



Luhang wellcome customers all around the wrold to come and vist us, and hope that there's chances to cooperate with you.
